เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี เหมาะกับงานบัดกรีจุดเล็ก และใช้งานได้พร้อมกัน 2 คน

FX-889 can make a wide variety of handpiece combinations.

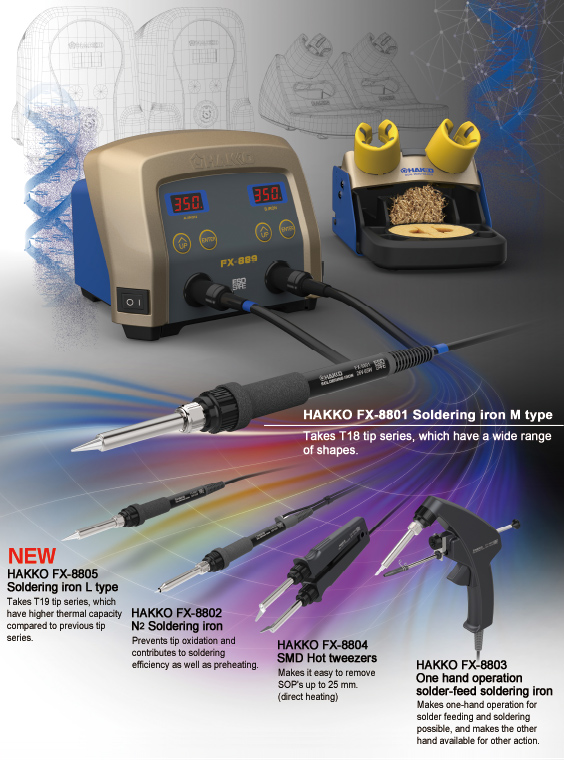

A newly born HAKKO FX-889 has 2 ports to support a variety of handpieces such as soldering irons of different power profile, gun type iron, tools for SMD rework.

Great cost performance

Excellent thermal conductivity

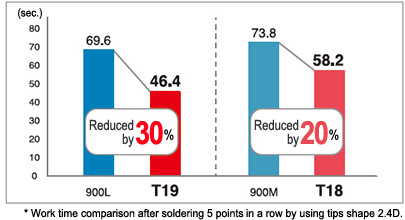

T18 and T19 tip series are designed to have improved thermal conductivity from their previous models by reviewing both external and internal structures.

Digital display

Digital display shows setting temperature at a glance.

Password function

Settings can be locked using a password to prevent them from being changed unexpectedly.

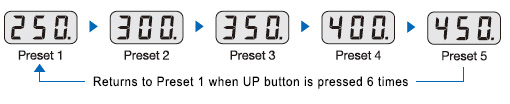

Preset mode

This feature is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape. Simply select the desired temperature from a selection of preset temperatures registered in advance. (Up to 5 preset temperatures can be registered.) Preset mode can save your trouble and improve workability.

Adjustment mode

Temperature adjustment* is an essential part of any strict quality control system. With adjustment mode, what used to be a troublesome procedure is now as simple as entering the measured tip temperature to FX-889.

* Adjust the tip temperature to match the set temperature in case that there is a difference between those temperatures due to tip shape, heater replacement, or other factors. Photo: Measuring the tip temperature with a tip thermometer HAKKO FG-100

User-Friendly Design

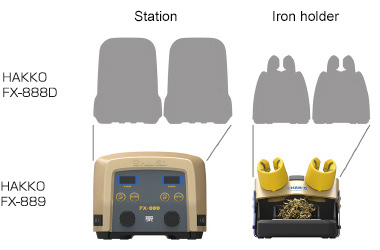

1.Space-saving design

The reduced foot print is smaller than 2 of FX-888D and its iron holder.Efficient setup is available even on smaller workbench.

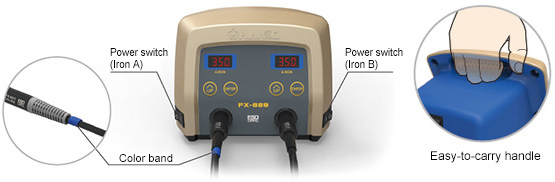

2.Power-saving design

Independent switches cut the power for each iron when not in use.Power-saving design minimizes standby electricity.

3.Superior operability

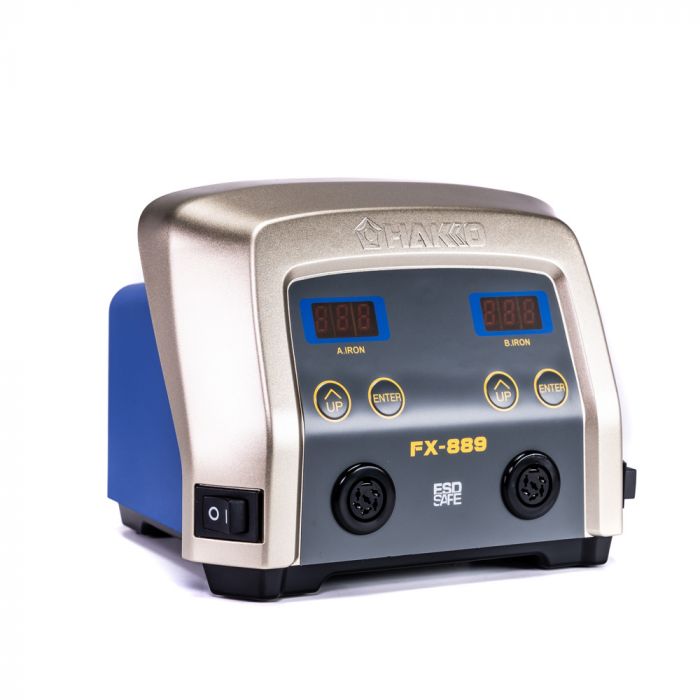

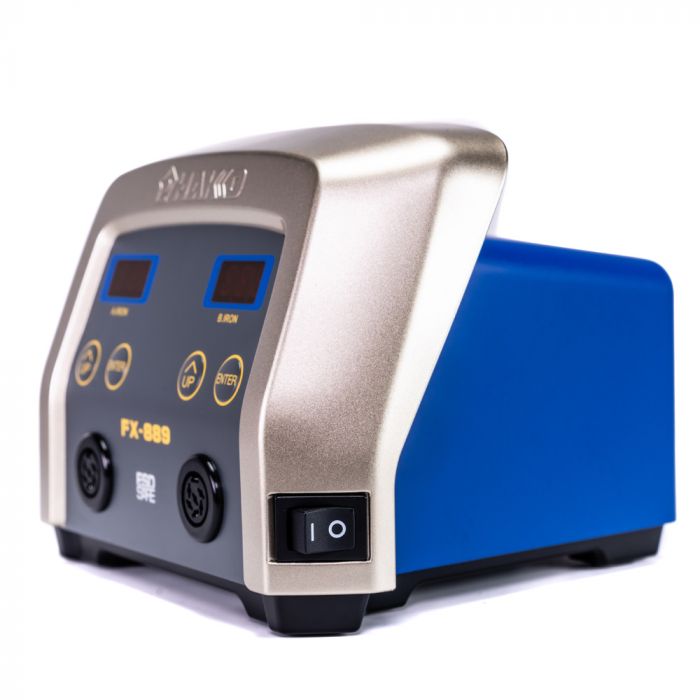

Four buttons were symmetrically placed at the both sides on the front panel. The two buttons on each side allow simple and intuitive operation.
A color band can be attached to the handle, and this makes it possible to see at a glance which side it is connected to.
(2 pieces of color band are included as the standard accessories.)

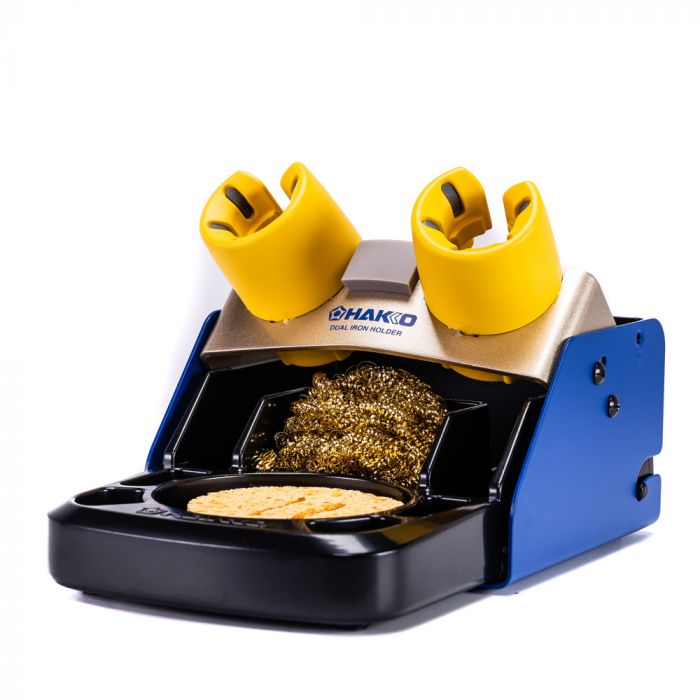

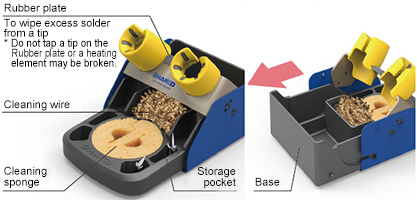

4.Rich functions of iron holder

Convenient pockets to stock soldering tips
Three different ways for tip cleaning with provided cleaning tools
Simple and easy cleaning of iron holder inside by removing holder base

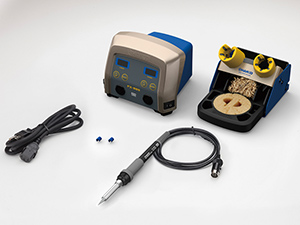

Model	The set includes
HAKKO FX-889		Station, Handpiece (FX-8801), Iron holder (with cleaning sponge, cleaning wire, rubber plate), Color band (qty 2), Power cord, Instruction manual

HAKKO FX-889

Model No.	FX-889
Power consumption	135W
Temperature range	50-480ºC
Temperature stability	±1ºC at idle temperature (When set to 200 to 480ºC)

Station

Output voltage	AC 26V
Dimension	157(W)×121(H)×149(D)mm
Weight	2.1kg

・Soldering Iron

Power consumption	65W (26V)
Nozzle to ground resistance	< 2Ω
Nozzle to ground potential	< 2mV
Heating element	Ceramic heater
Standard nozzle	Shape-B (No.T18-B)
Cord length	1.2m
Total length	217mm (with B tip)
Weight	46g (with B tip)

* Total length and weight (w/o cord)

เลือกซื้อปลาย T18 Series T18 Series
Shape BC/C (T18)

---

Shape B (T18)

---

Shape D (T18)

---

Shape I (T18)

---

Shape J (T18)

---

Shape K (T18)

---
