ด้ามปืนหัวแร้งบัดกรี สำหรับเครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี รุ่น FX-888D, FX-889, FR-701 และ FR-702

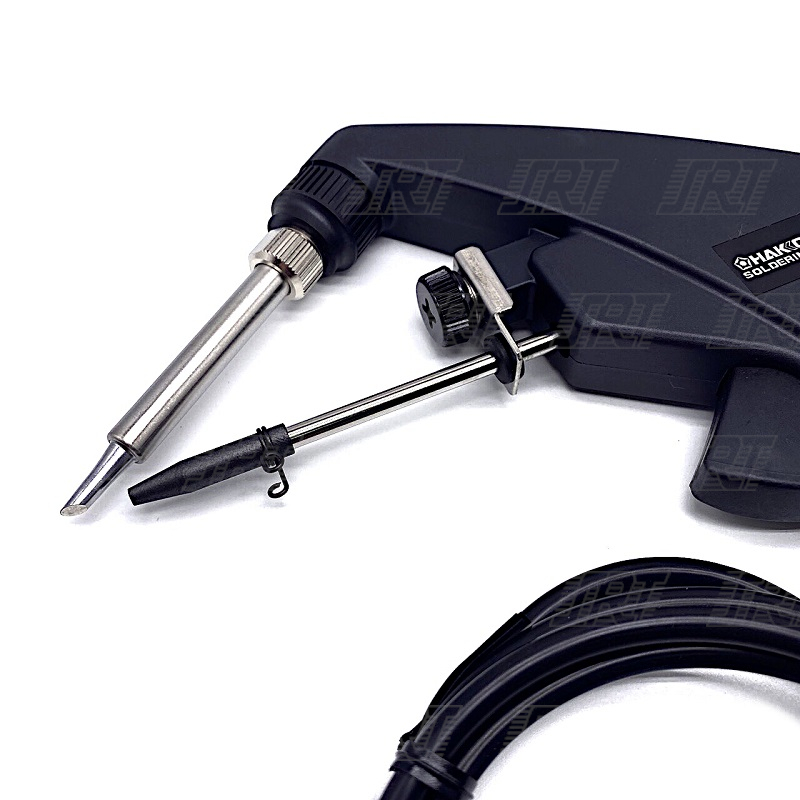

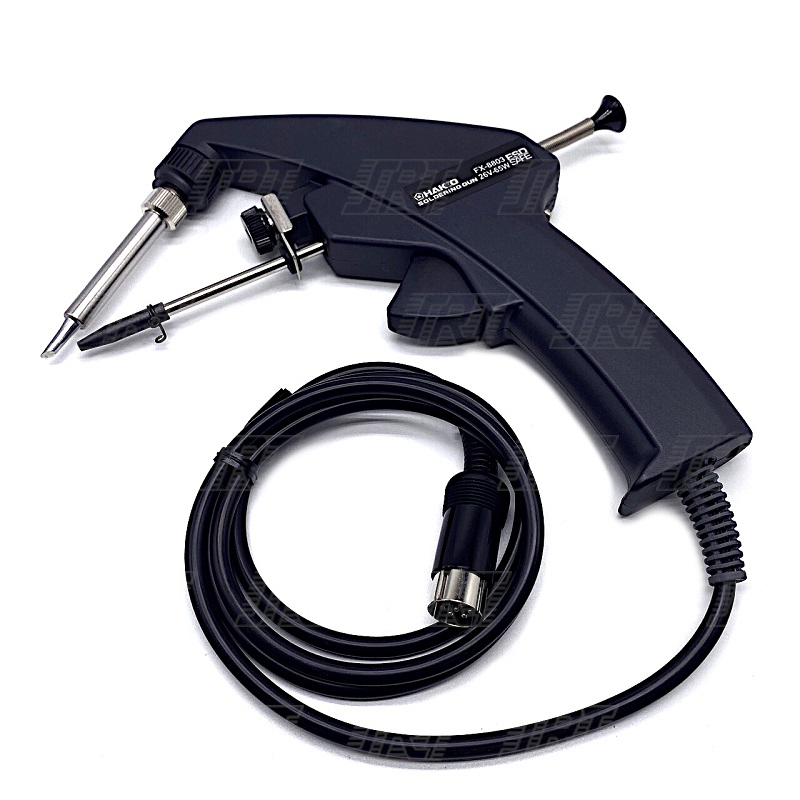

Soldering gun with manual solder feed

Solder and feed with one hand

-Can be used with your existing HAKKO FX-888(*Discontinued), HAKKO FX-888D, HAKKO FX-889, HAKKO FR-701 or HAKKO FR-702 soldering station.
-Feed a set amount of solder with one hand.
-Perform two actions at the same time with one hand.

Manual feed system is perfect for cellular manufacturing

-Manual system ensures solder can only be fed when working
-Soldering work can be conducted at the pace of the operator

Extensive lineup of tips

Anti-static specifications

*Requires separate purchase of iron holder C1437.

	Name	Figure	Part No.	Remarks
1	Soldering station HAKKO FX-888D		FX888D-**BY(Blue-Yellow)	Not necessary to purchase these units if you have any one.
	Soldering station HAKKO FX-888 (Discontinued)		FX888-**BY(Blue-Yellow)
	Soldering station HAKKO FX-889		FX889-**
	Soldering station HAKKO FR-701		FR701-**
	Soldering station HAKKO FR-702		FR702-**
2	Iron holder		C1437	With cleaning sponge
3	Handpiece		FX8803-01
	Manual solder-feed iron
4	T18Series	T18 Series Soldering Tips(for FX-8803)	T18-***	Select the soldering tip appropriate for work.
	Tip

Model	The set includes
HAKKO FX-8803	Soldering gun, instruction manual Standard tip: T18-CF3(Shape 3C, cut surface only)

Model No.	FX-8803
Power consumption	65W (26V)
Temperature range	50 to 480ºC
Tip to ground resistance	<2Ω
Tip to ground potential	<2mV
Heating element	Ceramic heater
Standard tip	Shape-3CF (No.T18-CF3)
Guide nozzle	Φ1.0mm (Option except Φ1.0mm guide nozzle)
Usable solder diameter	Φ0.6, 0.8, 1.0, 1.2, 1.6mm
Cord length	1.1m
Dimensions	170(W)×180(H)×23(D)mm (with 3C tip)
Weight	207g (with 3C tip)

* Total length and weight (w/o cord)

* The setting temperature range of FX-888 is from 200 to 480ºC.

เลือกซื้อปลาย T18 Series T18 Series
Shape BC/C (T18)

---

Shape B (T18)

---

Shape D (T18)

---

Shape I (T18)

---

Shape J (T18)

---

Shape K (T18)

---
