ด้ามแหนบความร้อน สำหรับเครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี รุ่น FX-888D, FX-889, FR-701 และ FR-702

SMD hot tweezer

Can be used with your existing HAKKO FX-888(*Discontinued), HAKKO FX-888D, HAKKO FX-889, HAKKO FR-701 or HAKKO FR-702 soldering station.

Direct heating—less influence upon surrounding components on crowded boards.

Easily removes SMD chips and flat packages up to 25mm.

The collet allows easy replacement and alignment of the tip.

	Name	Figure	Part No.	Remarks
1	Soldering station HAKKO FX-888D		FX888D-**BY(Blue-Yellow)	Not necessary to purchase these units if you have any one.
	Soldering station HAKKO FX-888 (Discontinued)		FX888-**BY(Blue-Yellow)
	Soldering station HAKKO FX-889		FX889-**
	Soldering station HAKKO FR-701		FR701-**
	Soldering station HAKKO FR-702		FR702-**
2	Iron holder HAKKO FH-800		FH800-04BY(Blue-Yellow)	If you have any one of the iron holders below, it can be used by purchasing holder clip B3666 as an additional component. FH800-03BY FH800-03SV FH800-01BY FH800-01SV
			FH800-02BY(Blue-Yellow)
3	Handpiece		FX8804-01
	Hot tweezer
4	for FX-8804	For chips/For SOP	FX-8804 replacement soldering tips	Select the soldering tip appropriate for work.
	Tip

Model	The set includes

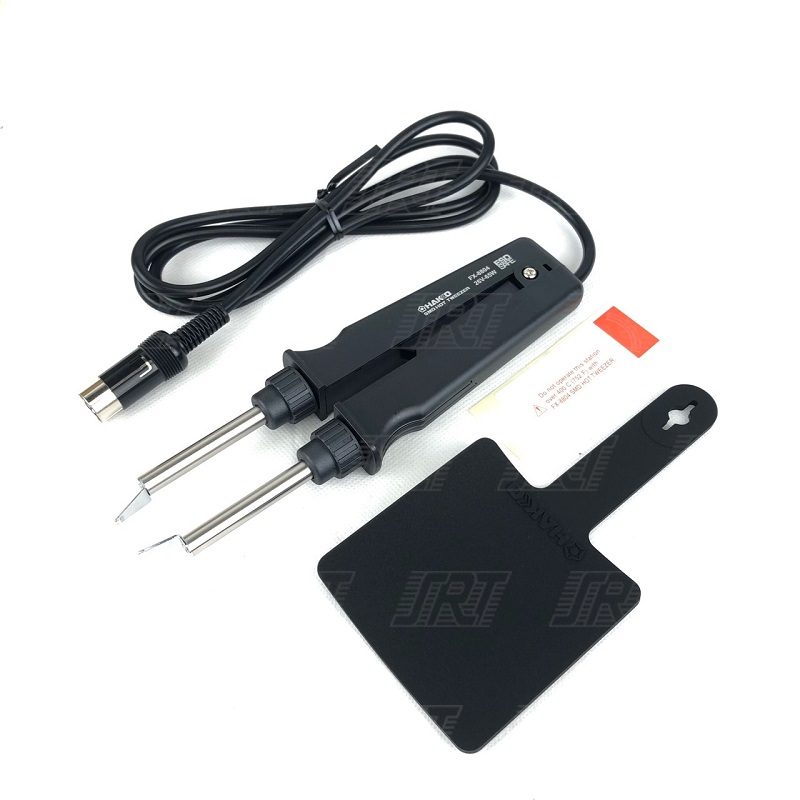

HAKKO FX-8804	Tweezers, warning label, heat-resistant pad, instruction manual Standard tip: A1378 (Chip 2L)

Model No.	FX-8804
Power consumption	65W (26V)
Temperature range	200 to 400ºC
Tip to ground resistance	<2Ω
Tip to ground potential	<2mV
Heating element	Ceramic heater
Standard tip	Shape-2L (No.A1378)2 pcs/set
Cord length	1.2m
Dimensions	186mm (with Chip 2L tip)
Weight	93g (with Chip 2L tip)

* Total length and weight (w/o cord)

* The recommended (process) temperature is from 200ºC to 400ºC while setting temperature range of FX-888D is from 50ºC to 480ºC.

เลือกซื้อปลาย 950/FX8804 Series 950/FX8804 Series
CHIP (950)

---

SOP (950)

---
