เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี 150Watt เหมาะกับงานบัดกรีจุดใหญ่

High Power 150W Soldering Station enjoys the various applications from large to fine components.

Great thermal recovery improves the soldering environment.(Refer to the graph bellow.)

- It allows soldering at lower set temperatures.
- It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.(Refer to the graph bellow.)
- It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but for microsoldering.

What benefit can be taken by Low set temperature and Cut in Soldering Working Time?
  1.They reduce the risk of the damage of heat-sensitive chips and workpieces.
  2.They diminish the oxidation of soldering tips.
As for soldering with Lead-free solder which has high melting point, setting temperature tends to be set higher than soldering with eutectic solder. It stimulates the oxidation of tips and results in the short tip life.

Operate at Maximum Temperature of 500 Degrees.

- It enables soldering power-supply boards easily because high power 150W hand piece can provide great thermal recovery.

High Power but Safety design of low voltage.

- This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V.

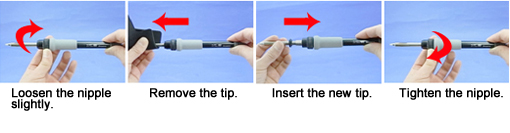

Easy to replace tips.

- Cartridge style Integrated heater makes thermal conductivity improve.
- Available 20 different shape as replacement, some of which are suitable for fine components.

HAKKO FX-838 replacement Tip List (T20 series)

Temperature preset mode saves time and effort.

- It allows you to input three frequently-used temperatures in advance and recall them with one push of a button.
- It saves the troublesome setting condition, tailored to the tip-shape, component and work.

Combination of optional handpiece allows use of N2 system.

N2 system

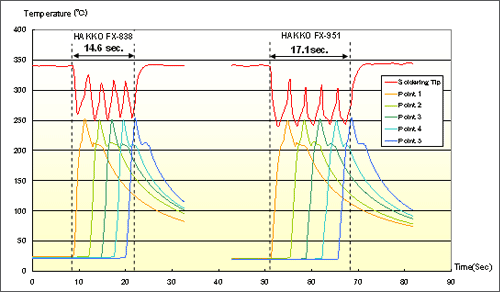

Great thermal recovery

150W hand piece provides great thermal recovery, which allows soldering at lower set temperatures to minimize concern about the influence of heat on components and tip life.

High power saves the working time.

The high power shortens the working time.

Test Condition

Test method	Solder at 5 points and measure the time until temperature of the workipiece reaches 250 degrees.
Board used	Bakelite board
Component	Terminal
Tip shape	Shape-1.6D
Temperature setting	340°C
Solder	Lead-free solder (Sn/Ag/Cu) ø0.5

High power saves the working time.

No.	Name	Picture	Remarks
1	HAKKO FX-838		With Control card, Heat resistant pad, Power cord, Connecting cable and Instruction manual.(Not necessary to purchase this unit if you have it.)
	Station
2	Iron holder		With HAKKO 599B
3			With cleaning sponge
4	HAKKO FX-8302
	N2 Soldering Iron
5	T20 Series		Select the tip appropriate for work.
	Tip
6	Nozzle assembly		Select the nozzle assembly applicable to the tip.
7	N2 Generator		With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally.
8	HAKKO FX-791
	N2 Flow Meter
9	The others		* The others are not provided by HAKKO

HAKKO FX-838

Model	Packing List

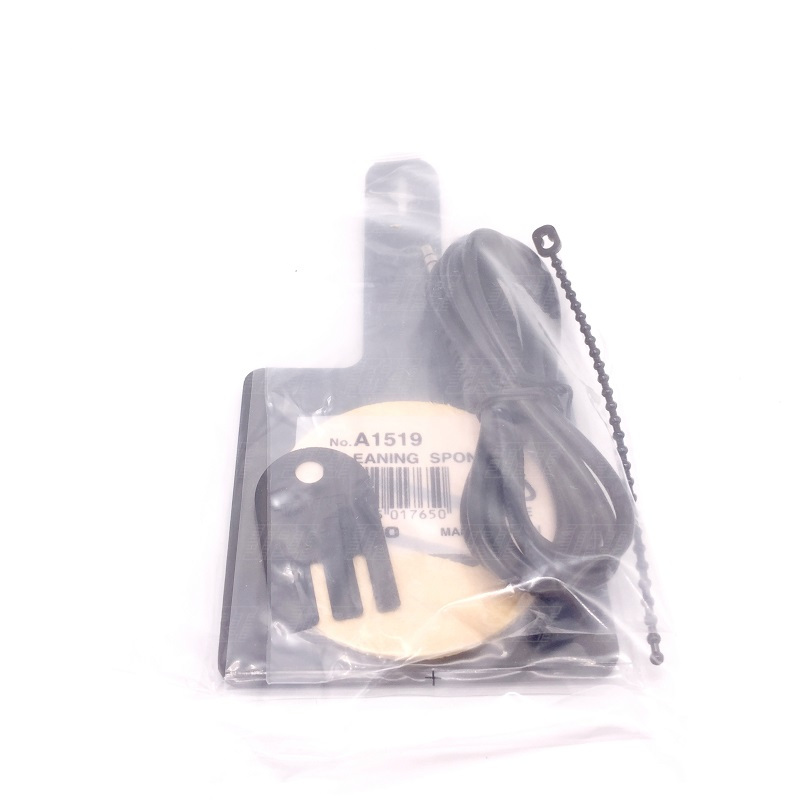

HAKKO FX-838	Soldering station (HAKKO FX-838), Soldering iron (HAKKO FX-8301), Control card, Power cord, Iron holder (With cleaning sponge and 599B), Connecting cable, Heat resistant pad, Instruction Manual * Nozzle not included

HAKKO FX-838

Model No.	FX-838
Power consumption	158 W
Temperature range	200-500ºC
Temperature stability	±5ºC at idle temperature

Station

Output voltage	AC 27V
Dimension	110(W)×110(H)×205(D)mm
Weight	3.2kg

Soldering Iron

Power consumption	150W (27V)
Tip to ground resistance	< 2Ω
Tip to ground potential	< 2mV
Heating element	Ceramic heater
Cord length	1.2m
Total length	175mm (with 2.4D tip)
Weight	31g (with 2.4D tip)

* Total length and weight (w/o cord).

For the HAKKO FX-838, soldering iron tips are not supplied as accessories. Please separately purchase "T20 Series" soldering iron tips.
เลือกซื้อปลาย T20 Series T20 Series
Shape BCM/CM (T20)

---

Shape BC/C (T20)

---

Shape B (T20)

---

Shape D (T20)

---

Shape J (T20)

---

Shape K (T20)

---

Shape Concave (T20)

---
