หัวแร้งบัดกรี ใช้ร่วมกับ ไนโตรเจน (N2) สำหรับรุ่น FX-838

The N2 gas and preheating effect have achieved significant improvement in soldering work!
N2 soldering iron providing 150W high output

Preheating effect

The hot N2 gas is effective for preheating.

Preventing oxidation

Powerful thermal recovery

Can be used in combination with your existing high power soldering station, HAKKO FX-838.

N2 System

Can be used in combination with the HAKKO FX-780 and HAKKO FX-791 to create an N2 System.

Combination Example

	Name	Figure	Remarks
1	HAKKO FX-838		With Control card, Heat resistant pad, Power cord, Connecting cable and Instruction manual.(Not necessary to purchase this unit if you have it.)
	Station
2	Iron holder		With HAKKO 599B
3			With cleaning sponge
4	HAKKO FX-8302
	N2 Soldering Iron
5	T20 Series		Select the tip appropriate for work.
6	Nozzle assembly		Select the nozzle assembly applicable to the tip.
7	N2 Generator	FX-780: Small-capacity type FX-781:Large-capacity type, accepts 2 irons	With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally.
8	HAKKO FX-791
	N2 Flow Meter
9	The others	Air tube Outer diameter: 6mm	* The others are not provided by HAKKO

Model	The set includes
No.FX8302-01	N2 soldering iron

Note:This unit does not include neither a soldering tip nor a nozzle assembly. When purchasing this unit, please buy your desired soldering tip and with nozzle assembly together.

Model No.	FX-8302
Power consumption	150W (27V)
Temperature range	200 to 500ºC
Tip to ground resistance	<2Ω
Tip to ground potential	<2mV
Heating element	Ceramic heater
Cord length	1.2m
Total length	195mm (with 2.4D tip)
Weight	41g (with 2.4D tip and nozzle assembly D)

*Total length and weight (w/o cord, tube)

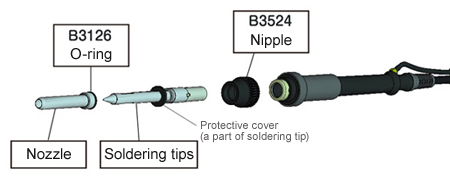

For the HAKKO FX-8802, soldering iron tips and nozzle assembly are not supplied as accessories. Please separately purchase "T20 Series" soldering iron tips and a compatible nozzle assembly onto the tip.

เลือกซื้อปลาย T20 Series T20 Series
Shape BCM/CM (T20)

---

Shape BC/C (T20)

---

Shape B (T20)

---

Shape D (T20)

---

Shape J (T20)

---

Shape K (T20)

---

Shape Concave (T20)

---
