Micro Hot Air with a wide temperature range and fine airflow control.
-Ideal for precise rework on high thermal mass PWBs and delicate miniature components

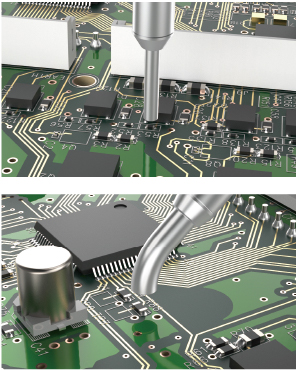

Enables precise rework of densely packed SMDs without affecting surrounding components

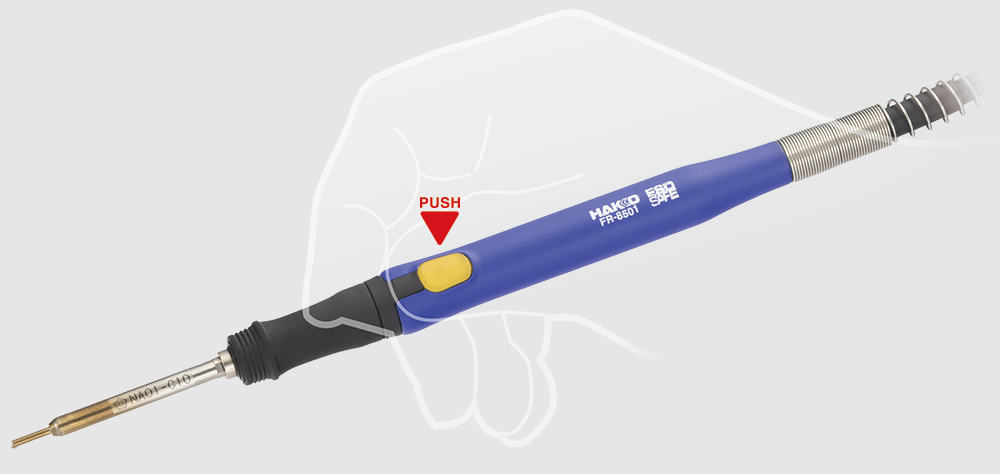

Control hot air ON/OFF with the iron unit button.

Ideal for precision work under a microscope. Enhances both efficiency and accuracy in micro-scale operations.

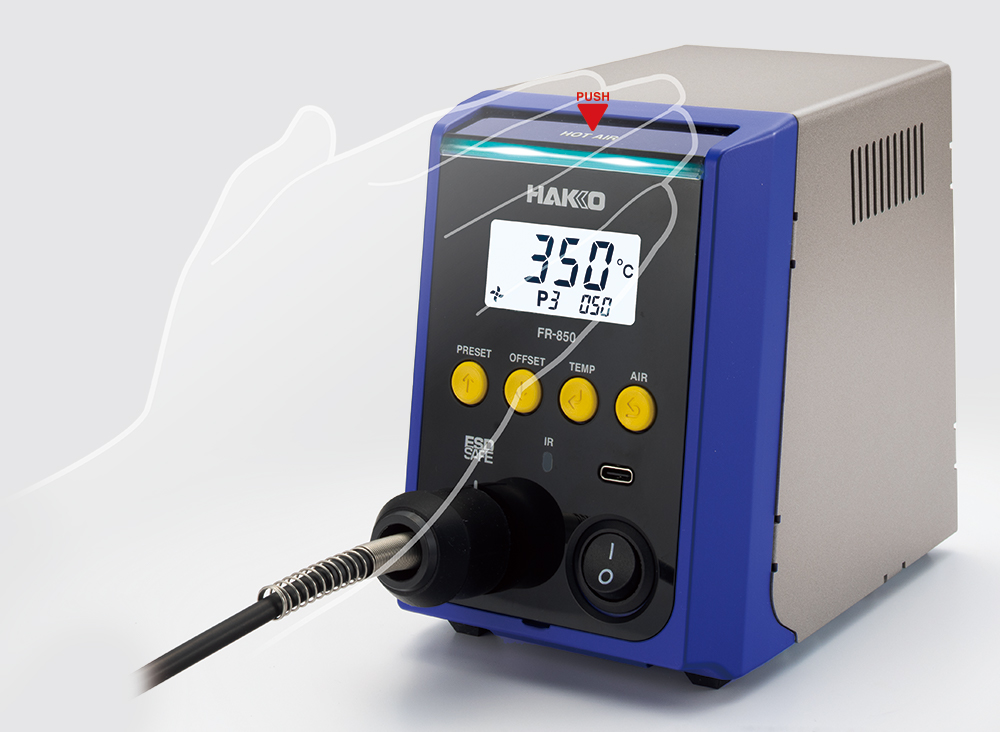

Wide top-mounted button is also for hot air ON/OFF control.

Operating status is instantly visible with LED indicator on top.

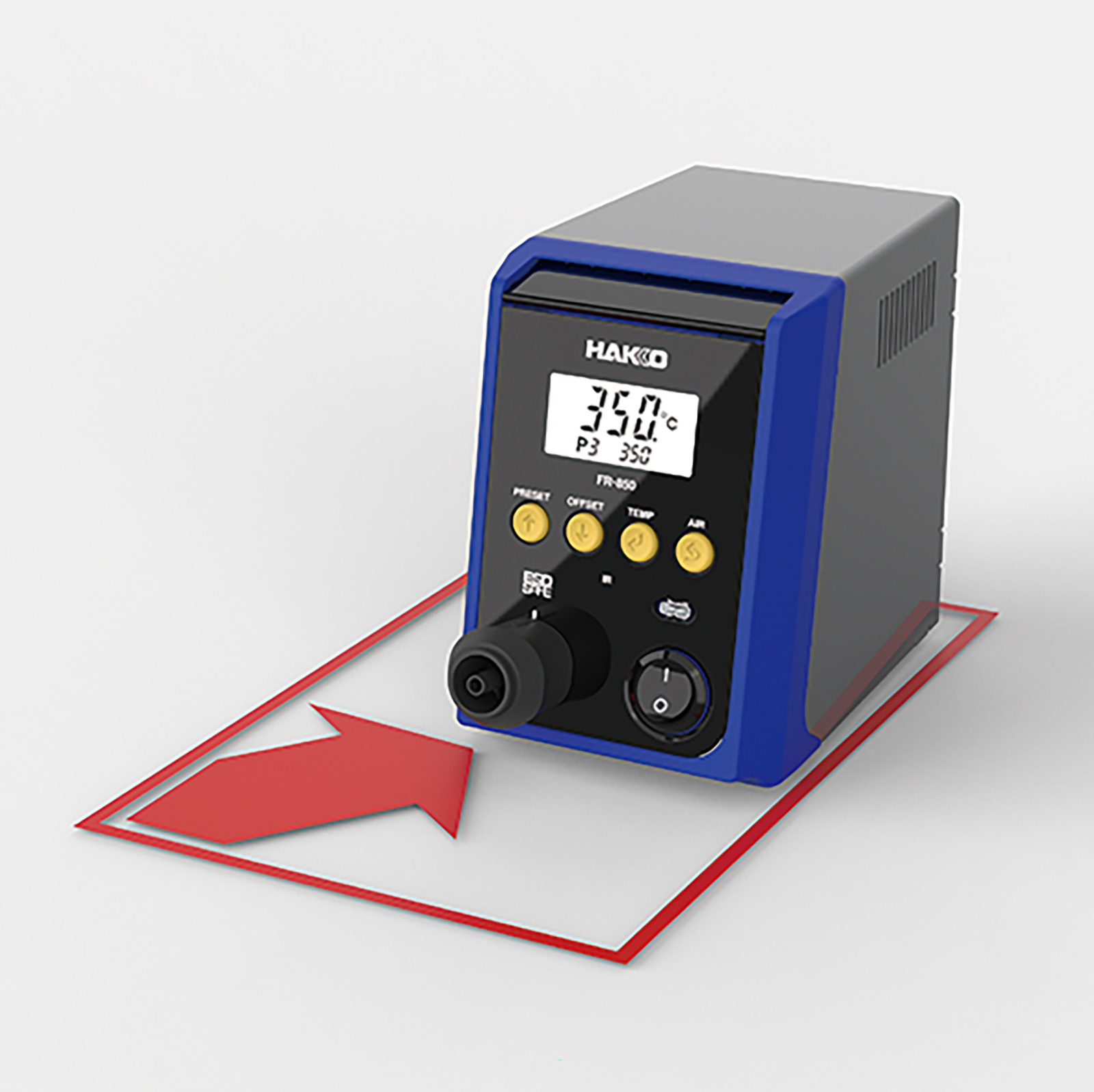

55% smaller footprint compared to conventional models. Ideal for space-saving in work environments.

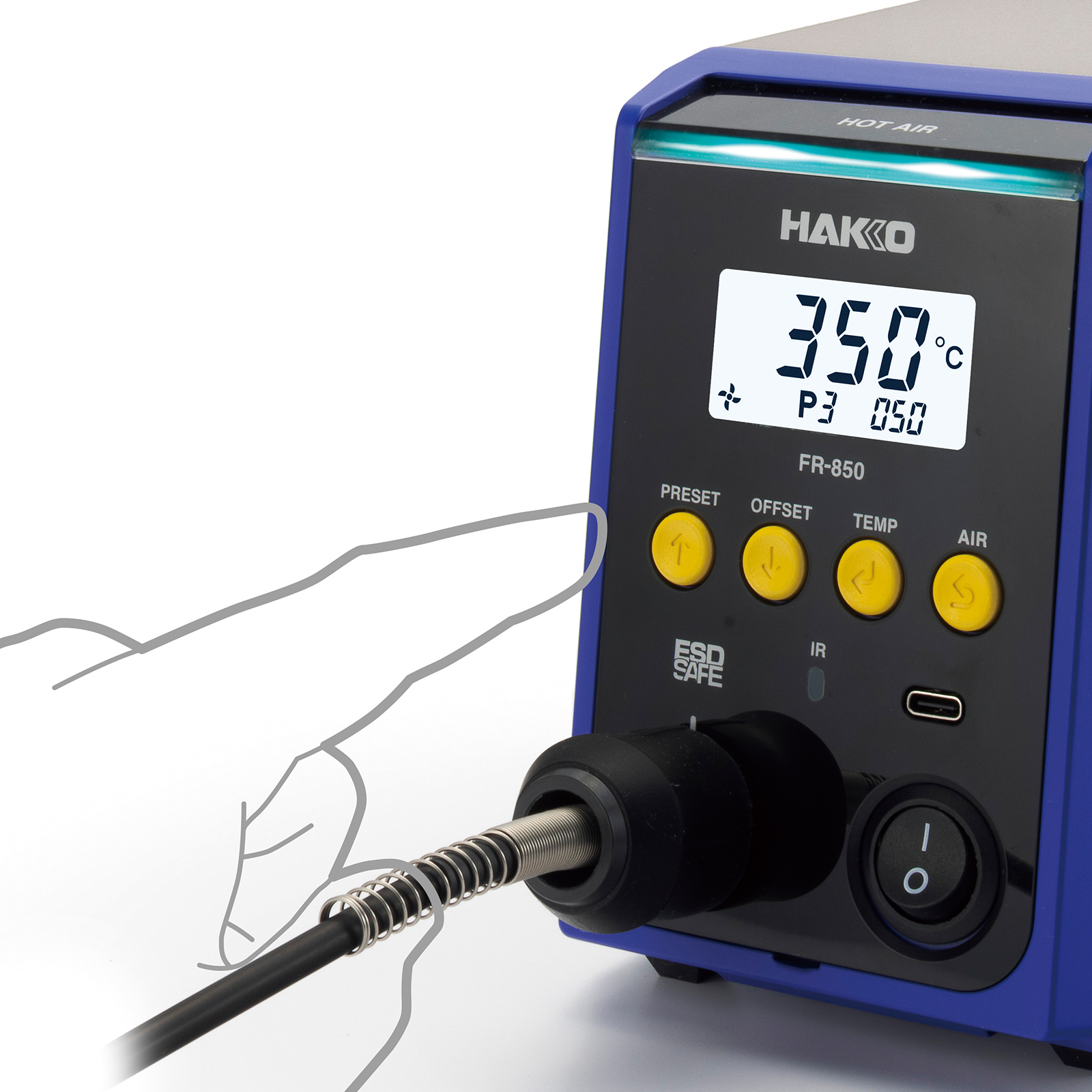

All settings can be easily adjusted with just four buttons.

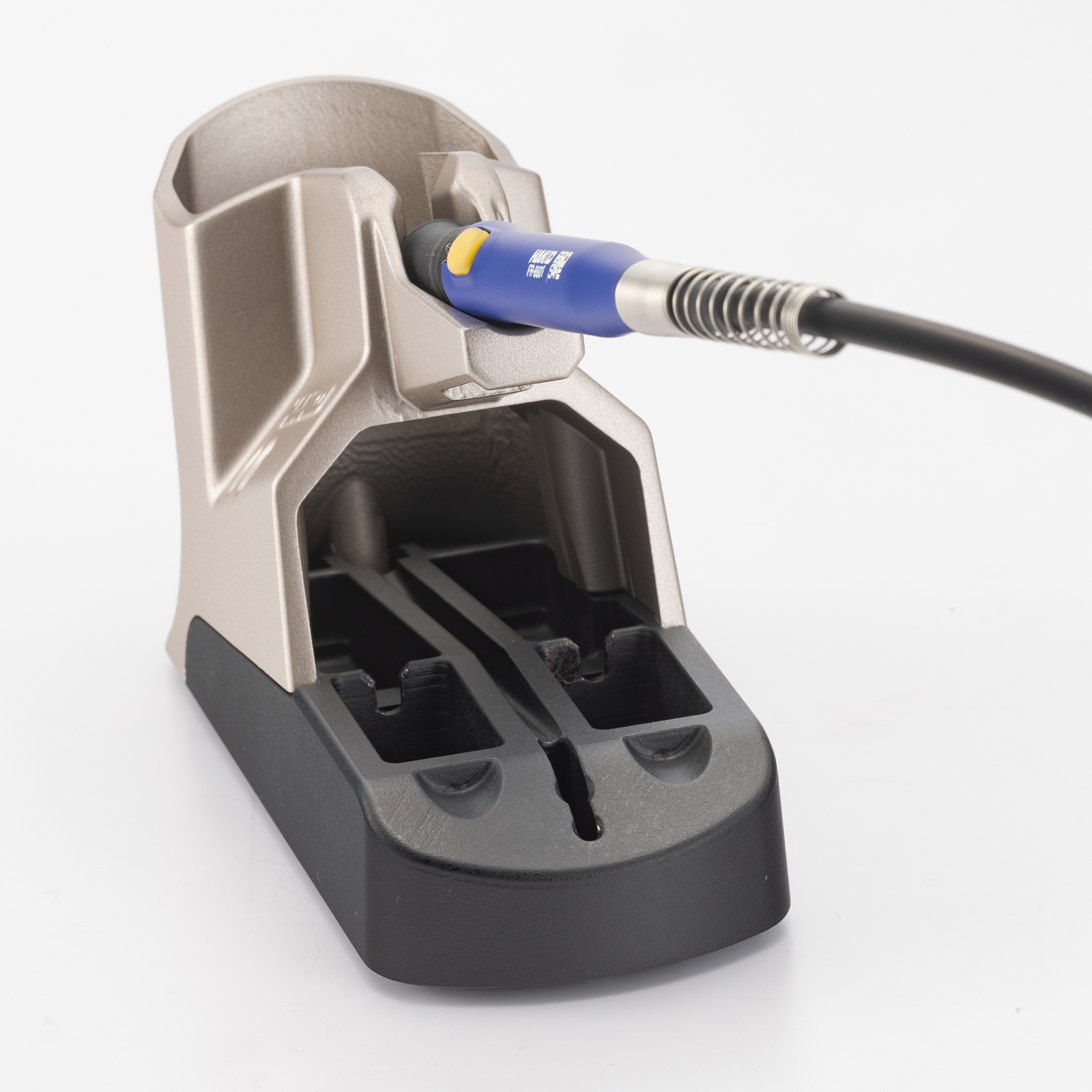

Equipped with an auto-cooling function that activates simply by placing the iron on the stand.

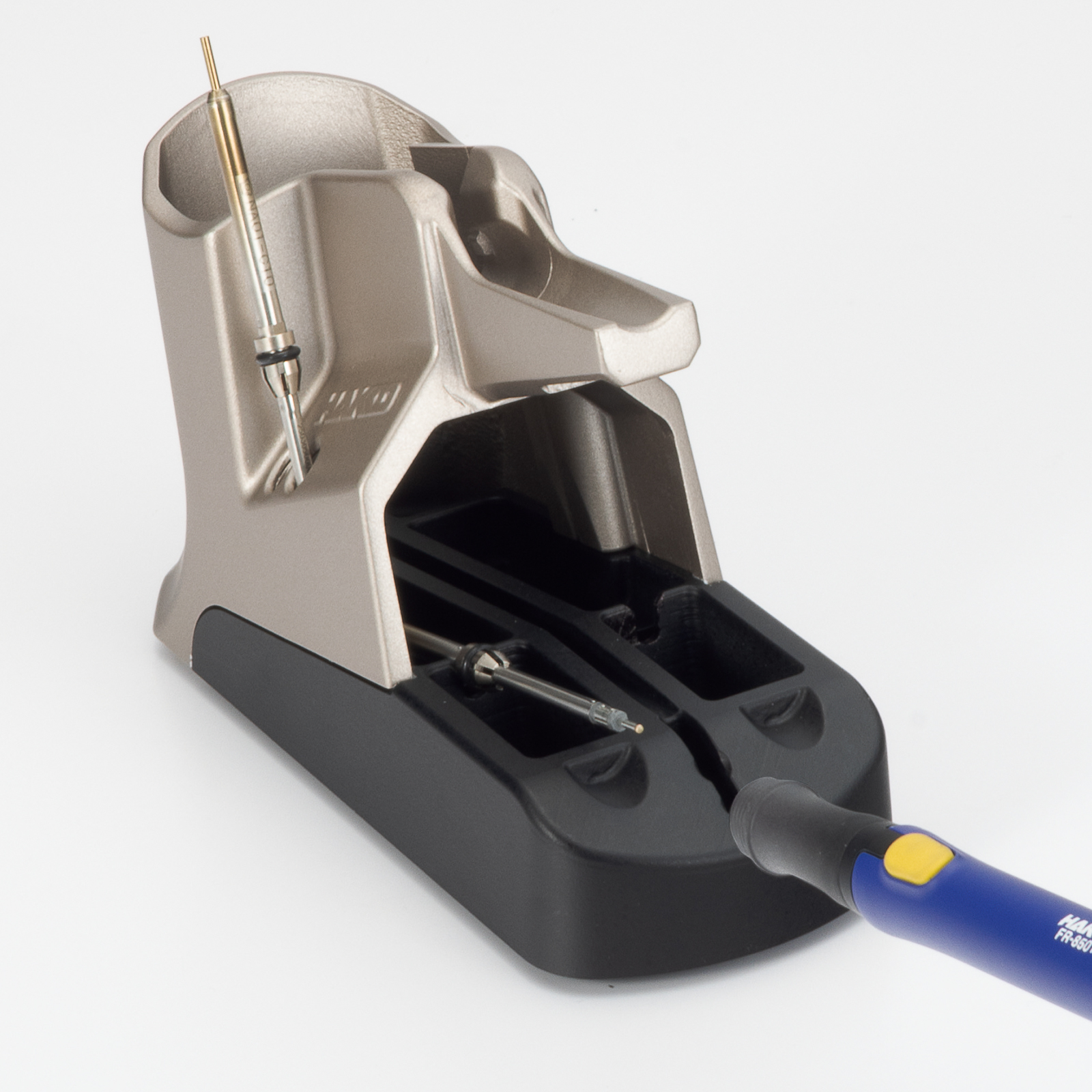

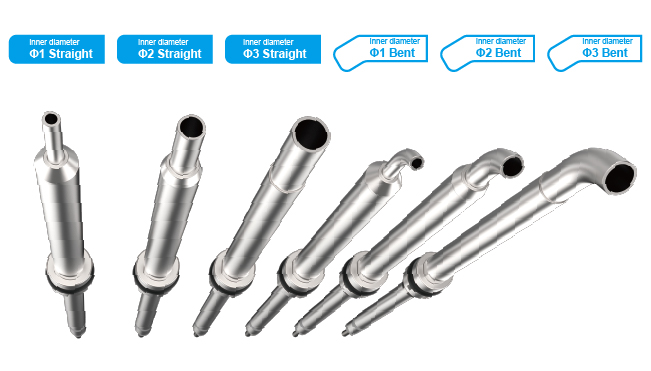

One-touch nozzle attachment and removal ensures safe and easy handling. Capable of storing up to four nozzles.

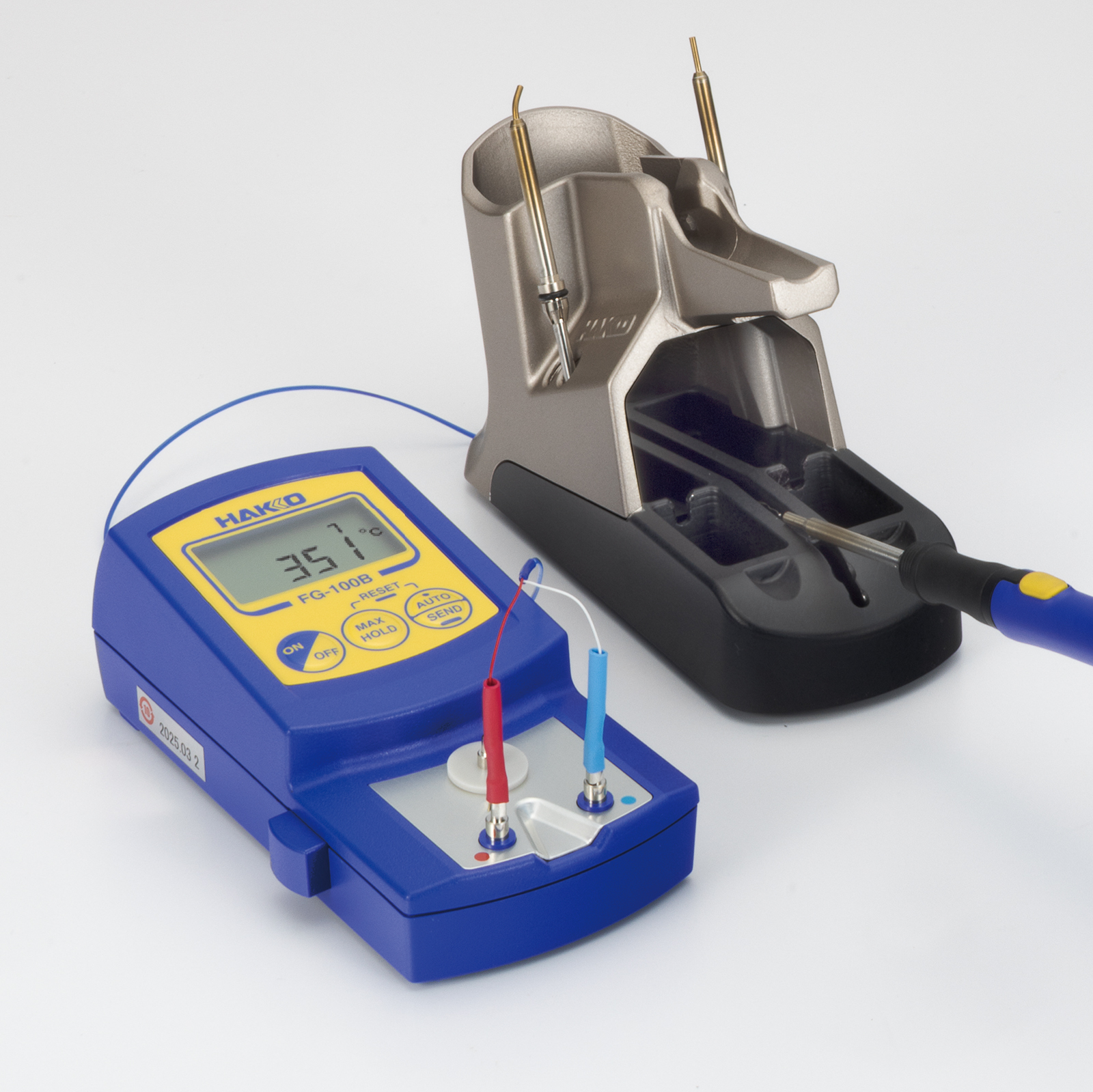

Hot air temperature measurement is possible by installing the A1557 sensor on the stand.

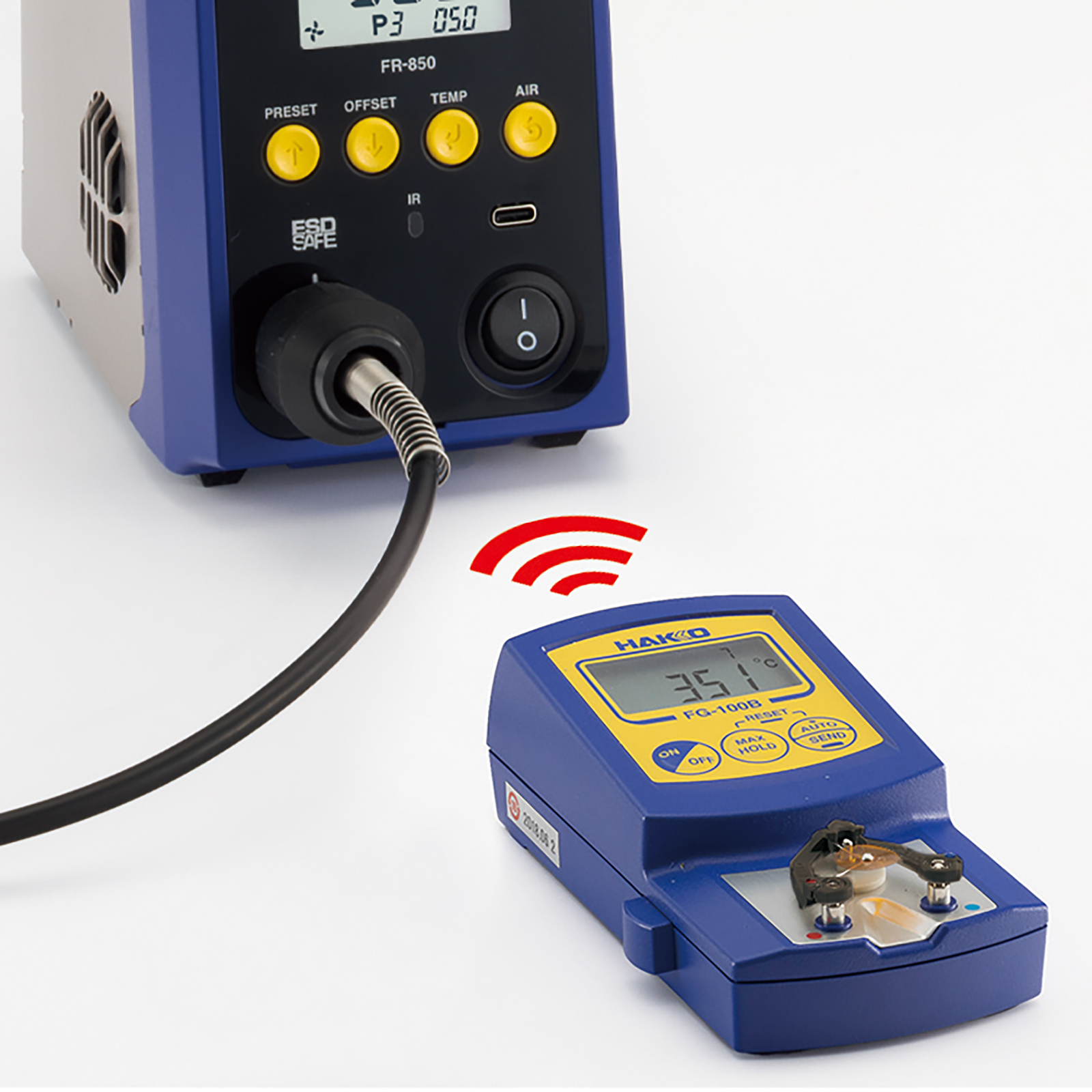

Automatic calibration and correction can be completed by transmitting the measurement data from the thermometer
(FG-100B/FG-101B) to the main unit, via infrared.

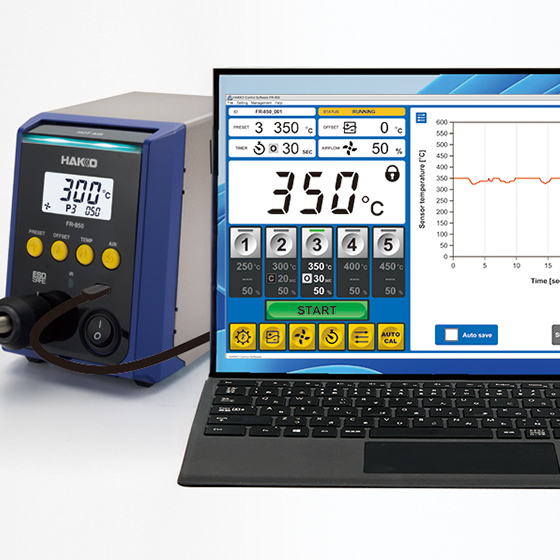

By connecting the station to a PC, the set temperature of the hot air, operation can be recorded on the PC.Enables management with zero human error.calibration/correction, and the hot air temperature history during

Auto shutoff function reduces unnecessary power consumption and minimize equipment wear.

Hot-Air SMD Rework Station FR-850

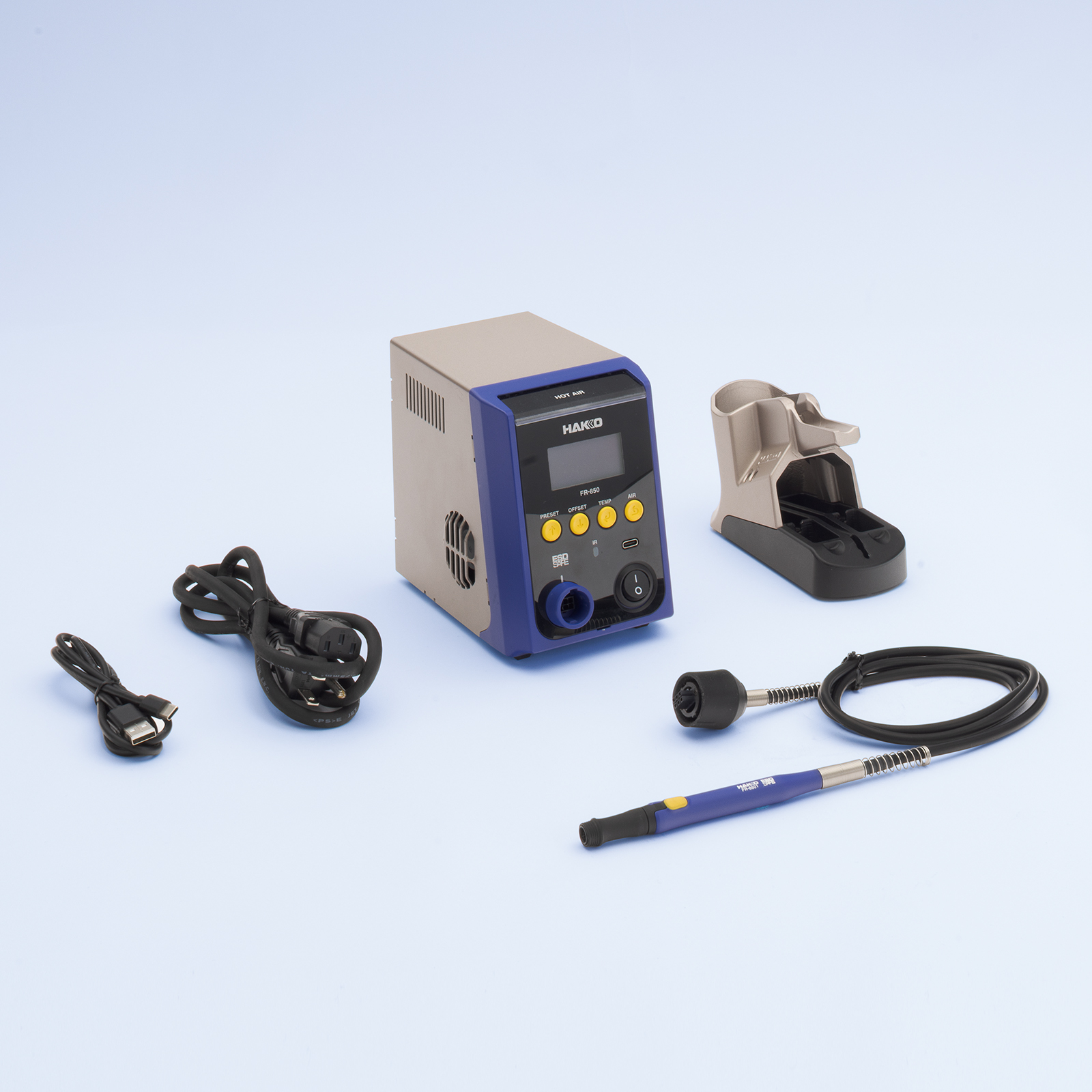

Model	Packing List
FR-850		Station Handpiece (FR-8501) Iron holder (FH-225) USB cable Power cord Instruction manual

* In FR-850, no nozzle is included. Please purchase a nozzle separately.

HAKKO FR-850

Model No.	FR-805
Power consumption	112 W
Temperature range	50 to 600ºC
Temperature stability	±5ºC at idle temperature

Station

Power consumption	7 W
Air flow	1.5 to 5 L/min.
Dimension	98 (W) × 140 (H) × 165 (D) mm
Weight	1.8 kg

Handpiece

Power consumption	105W (24V)
Nozzle to ground resistance	< 2 Ω
Nozzle to ground potential	< 2 mV
Heating element	Composite heater
Cord length	1.2m
Total length	227 mm (with NA01-C20 nozzle)
Weight	70 g (with NA01-C20 nozzle)
