เครื่องวัดอุณหภูมิ มีการออกแบบที่กะทัดรัดช่วยประหยัด พื้นที่ทำงาน เซ็นเซอร์เหมาะกับการเกิดปฏิกิริยาอุณหภูมิสูง

Surely and easily Temperature control

Suitable for Lead-Free Solder

· Good temperature response using a fine CA wire sensor (φ0.2mm)
· Disposable sensor always maintains accurate temperature measurment (Replace sensor when the measuring point underwent degradation)
· Sensor has the twice service life than conventional ones.

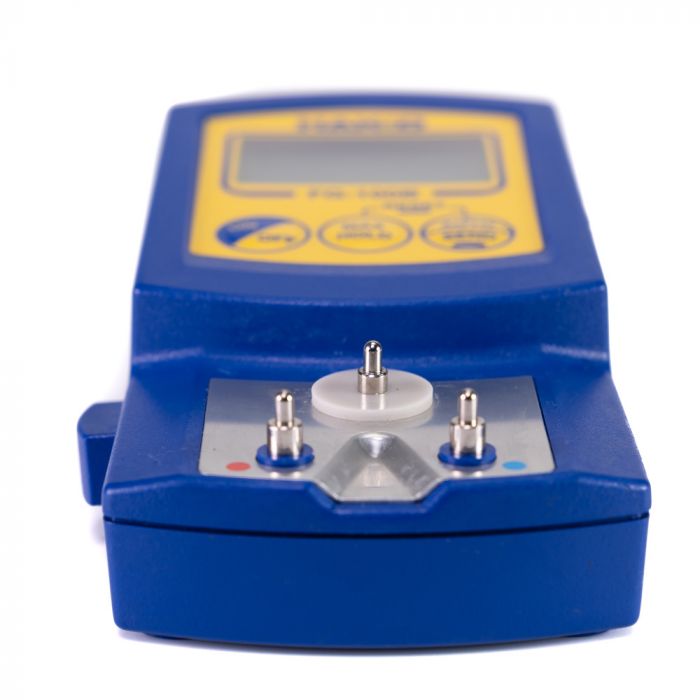

Dimensional Measurement

· Allows you to measure from any desired direction according to tip shape

Auto Shut-Off Function

· If no measurement operation is performed within 3 minutes, the power will be automatically shut off.

MAX HOLD Function

· When the button "MAX HOLD" is pressed, "MAX HOLD" will be displayed and the highest temperature of Iron will be held in the display.

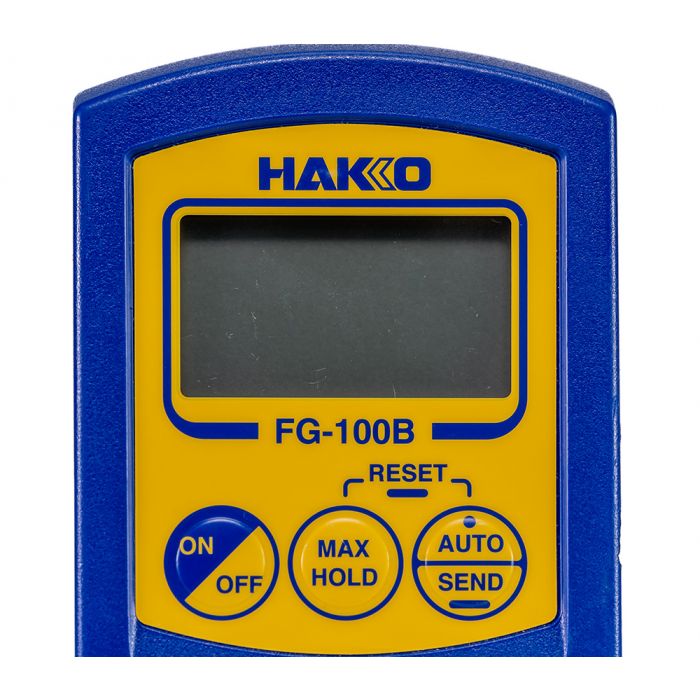

Easy-to-read temperature

· Large and clear display
· Digital temperature display make to read it accurately

Compact Size

· Convenient to carry and saves your workspace

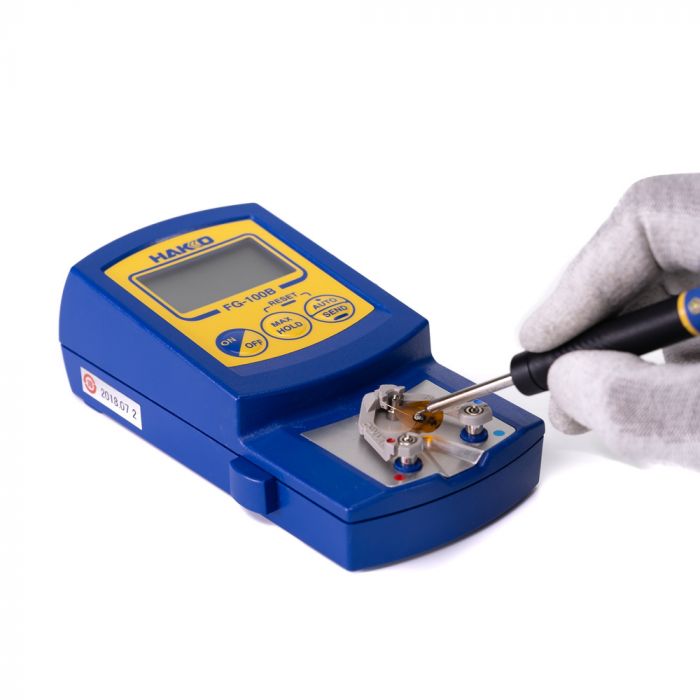

Usage / Applications

Initial display (room temperature) appearing when the power is turned ON

It is not necessary to deduct the room temperature that was displayed when the power was turned ON from the measured temprature. The temperature appearing on the LED display is the actual measured value.

Guaranteed temperature range with the measurement tolerance of ±3°C

In general, the optimal temperature range for soldering is 300°C to 500°C, and that for SMD rework system is 300°C to 600°C. The tolerance of ±3°C within the optimal temperature range (300°C to 600°C) is assured. For the temperature range other than the above, the tolerance is not guaranteed but usually stays in the range of about ±5°C.

Model	Packing List
HAKKO FG-100	Main body FG-100, 006P 9V Manganese dry battery, Instruction manual, Free Sensor AS5000 (1 pcs)

Model No.	FG-100
Power supply	006P 9V dry battery (alkaline sell recommended)
Temperature resolution	1ºC
Temperature measurement range	0-700ºC
Temperature precision	±3ºC (300 to 600ºC) ±5ºC (other than above)
Temperature sensor	K (CA)type thermocouple
Display	LCD : 3 1/2digits Besides measured temperatures,display indications include the following: - Battery low alarm - Burnout alarm - MAX HOLD : 'MAX HOLD' is displayed at the lower right of the LCD.
Operating environment	Ambient temperature/humidity range : 0 to 40ºC, 20 to 90%RH (without condensation)
Environmental conditions	Applicable rated pollution degree 2 (according to IEC/UL 61010-1)
Dimensions	68(W)× 140(H)× 38(D)mm
Weight	115g

* Dimensions : excluding protrusions
* Weight (excludeing battery)
* When battery low alarm appears, be sure to replace the battery. Failure to do so will result in incorrect
temperature measurements.

HAKKO FG-100 Display Example
