เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี, เครื่องดูดตะกั่ว และเป่าลมร้อน เหมาะกับงานบัดกรีทุกประเภท

Combines soldering, desoldering, and rework functions in a compact body.

Features expandability in which the handpiece can be switched as needed for added functions.
Comes with hot air-type rework functions and expands the range of repair of SMD parts with hot air handpiece.

FM-2027 lock-type soldering iron

The sleeve of the FM-2027 soldering iron can be locked to secure the tip.

FM-2024 The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.

FM-2029 has a slender grip ideal for work in narrow spaces.

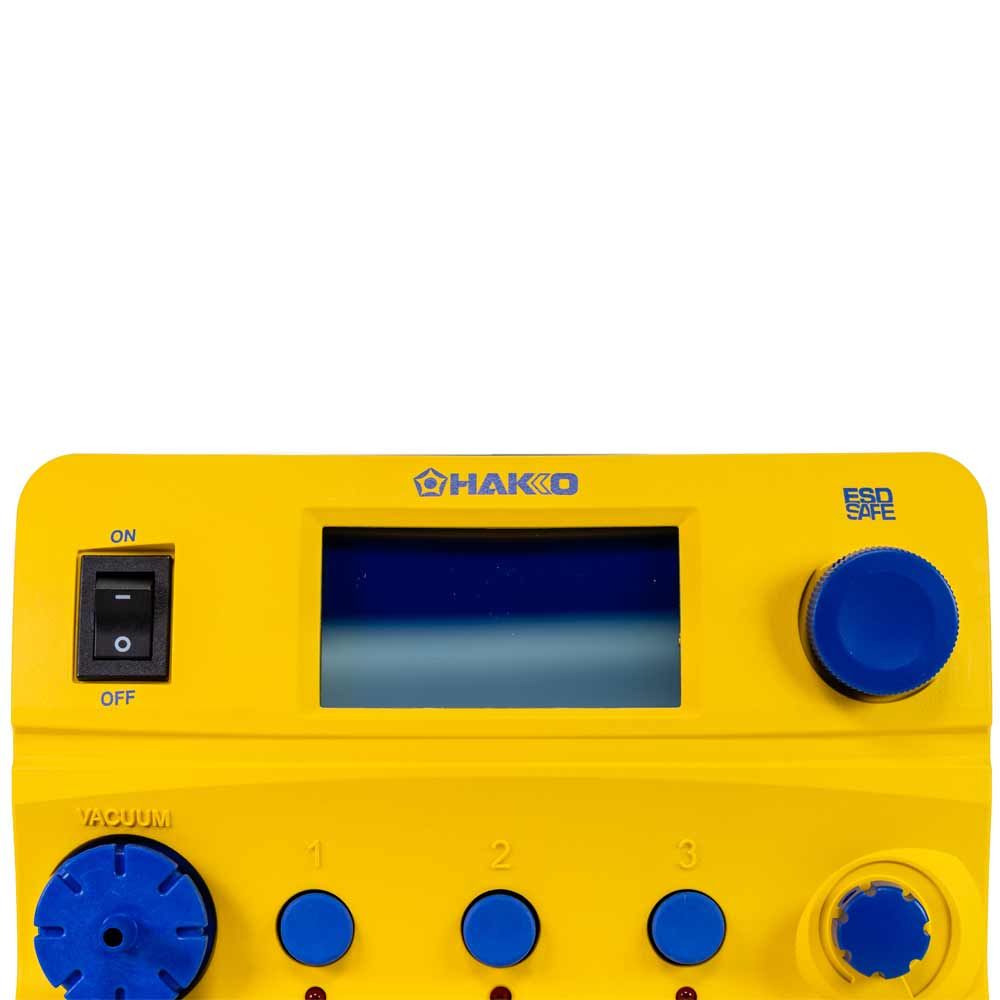

Large LCD panel for easy operation

Uses a large LCD for easy panel reading and easy, stress-free setting changes.

Usage / Applications

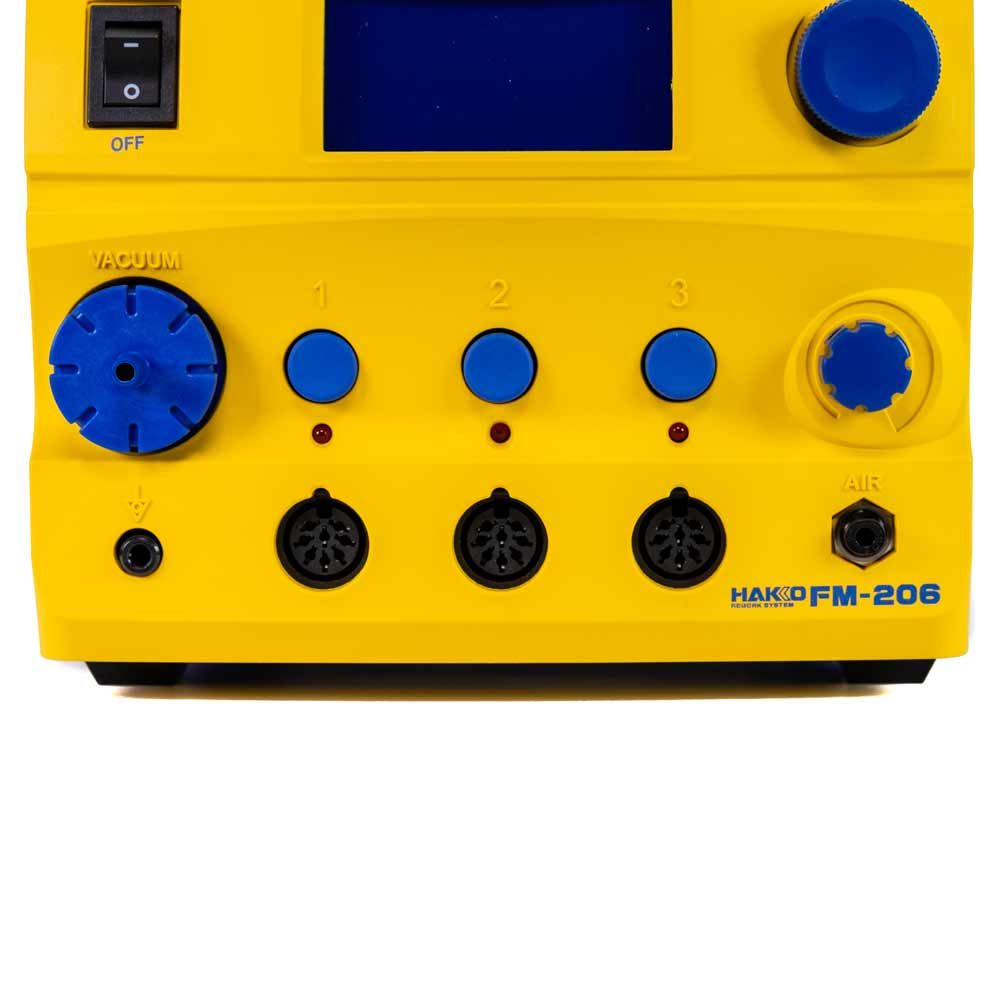

Receptacle1	Receptacle2	Receptacle3
FM-2024	FM-2022	FM-2024
FM-2026	FM-2023	FM-2026
FM-2027	FM-2024	FM-2027
FM-2032	FM-2026	FM-2029
	FM-2027	FM-2030
	FM-2030	FM-2031
	FM-2031	FM-2032
	FM-2032

Model	Packing List
HAKKO FM-206	Station, Power cord, FM-2024 conversion kit, Tip tray, FM-2027 conversion kit, FM-2029 conversion kit, Instruction manual * Nozzle not included

Model No.	FM-206
Power consumption	410W (Max.)
Temperature range	FM-2026/2027：200 to 450ºC   FM-2022/2023：200 to 400ºC   FM-2024：350 to 450ºC   FM-2029：100 to 550ºC   FM-2030：200 to 500ºC   FM-2031：200 to 500ºC FM-2032：200 to 450ºC
Temperature stability	±5ºC at idle temperature

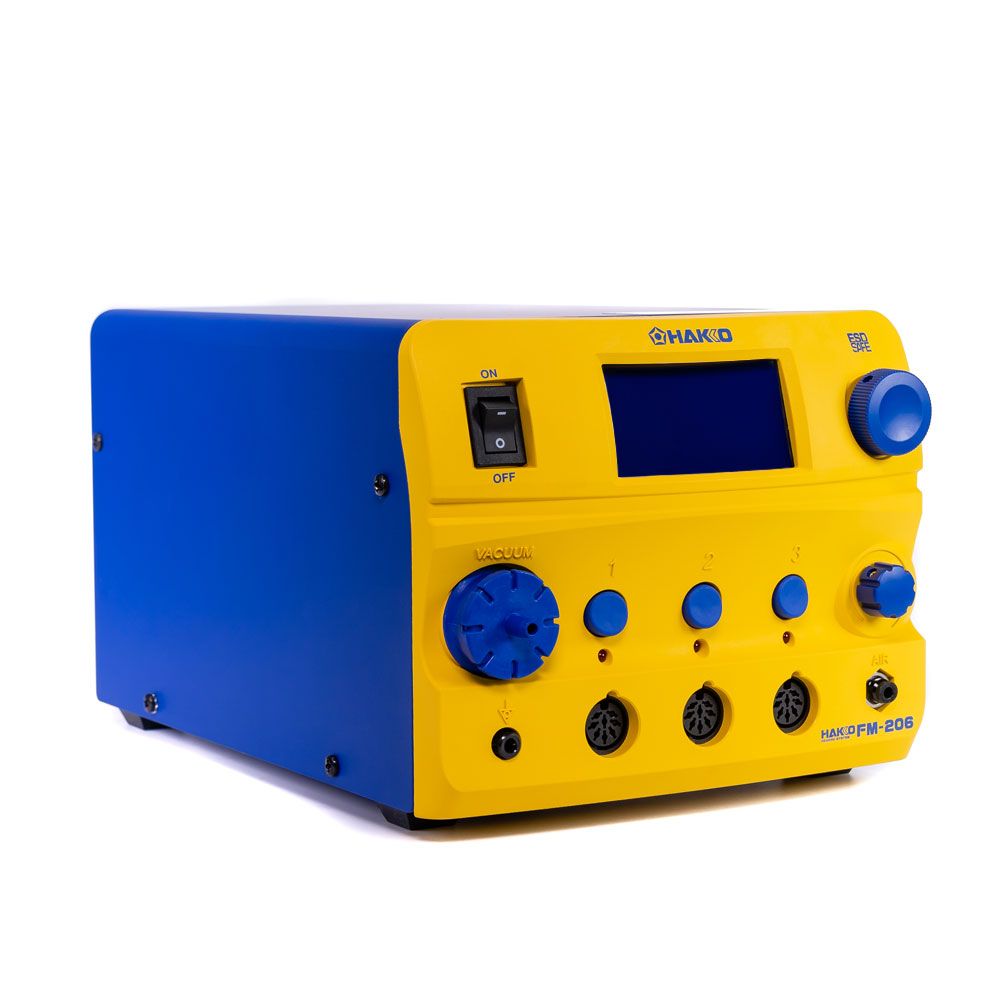

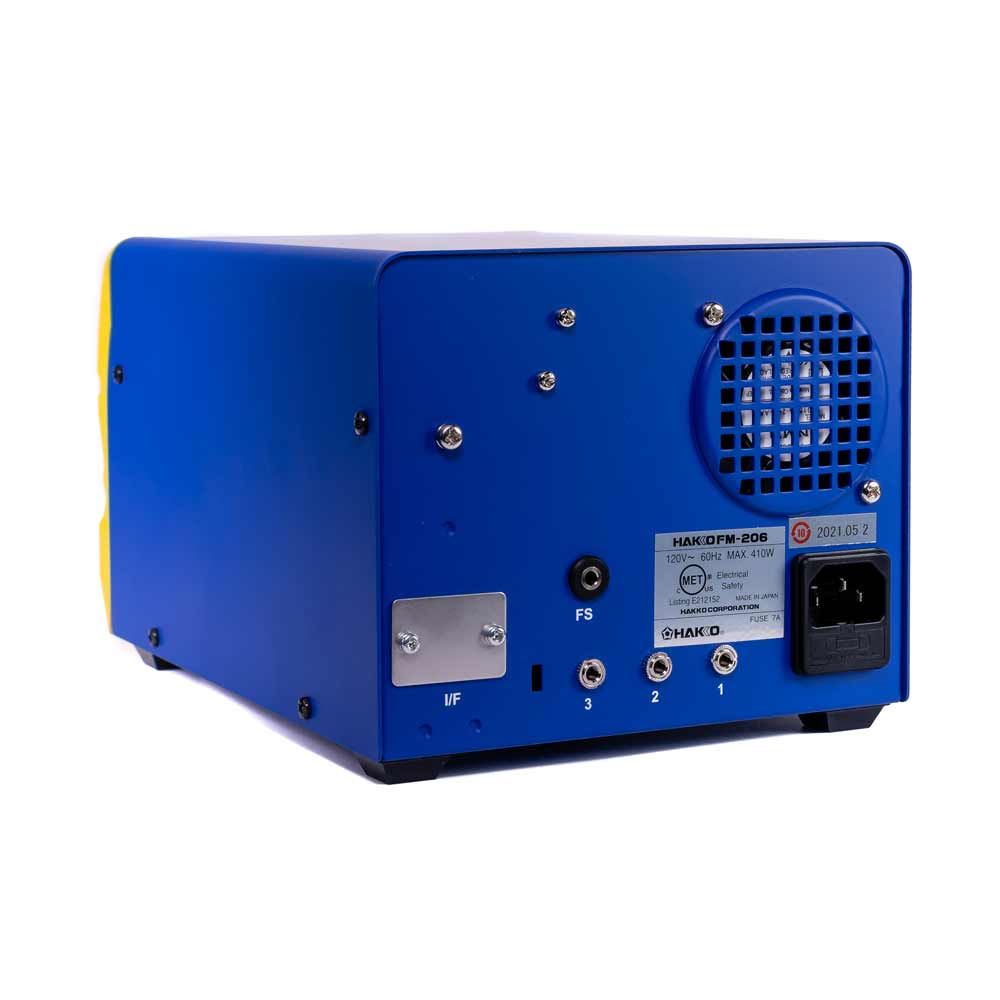

Station

Output voltage	AC 24V
Vacuum generator	Vacuum pump, cylinder type
Vacuum pressure	80kPa (600mmHg) (Max.)
Suction flow	14L/min.
Air flow	6L/min. (Max.)
Dimension	162(W)×136(H)×245(D)mm
Weight	6.2kg

Soldering Iron

Power consumption	70W (24V)
Tip to ground resistance	< 2Ω
Tip to ground potential	< 2mV
Heating element	Composite heater
Cord length	1.2m
Total length	188mm (with 2.4D tip)
Weight	30g (with 2.4D tip)

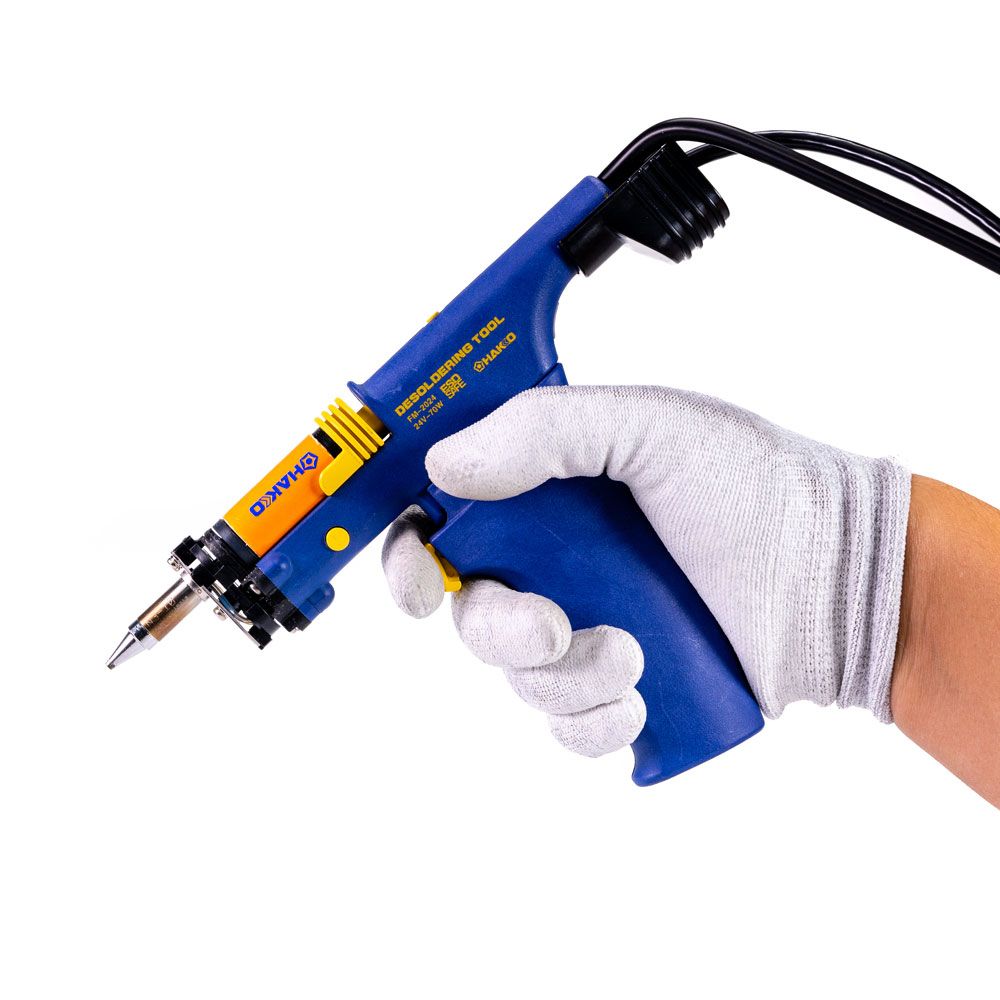

Desoldering Tool

Power consumption	70W (24V)
Nozzle to ground resistance	< 2Ω
Nozzle to ground potential	< 2mV
Heating element	Composite heater
Cord length	1.2m
Total length	180mm (with Φ1.0mm nozzle)
Weight	65g (with 2.4D tip)

Handpiece (Hot air) : for FM-206

Power consumption	140W (24V)
Nozzle to ground resistance	< 2Ω
Nozzle to ground potential	< 2mV
Heating element	Composite heater
Cord length	1.2m
Total length	232mm (with Φ4.0mm nozzle)
Weight	50g (with Φ4.0mm nozzle)

* Total length and weight (w/o cord).

* Total length and weight for handpiece (Hot air) (w/o cord, tube)
