ด้ามปืนดูดตะกั่ว สำหรับเครื่องควบคุมอุณหภูมิอัตโนมัติ รุ่น FM-204 และ FM-206 ถ้าใช้กับ FM-203 ต้องมีปั๊มลมภายนอก

Integrated heater realizes great thermal recovery.
Nozzle can be replaced with simple pulling-out operation.

Choose station to suit the operation

Specifications vary by station combined.
- Vacuum pump type desoldering tool
HAKKO FM-204 Vacuum pomp type
HAKKO FM-206 (3-handpiece insertion, optional soldering, SMD rework possible)
- Distribution equipment for plant air or other type of compressed air is required.
HAKKO FM-202 (Discontinued Products)
HAKKO FM-203(2-handpiece insertion, optional soldering, SMD rework possible)
Distribution equipment for plant air or other type of compressed air is required.
Two power receptacles are required.

One unit can serve dual usage of Gun/Straight configurations

The composite nozzle ensures superior thermal recovery

Lightweight design

ESD safe by design

Gun configuration

Straight configuration

Nozzle cartridge can be replaced even before the nozzle becomes cool.

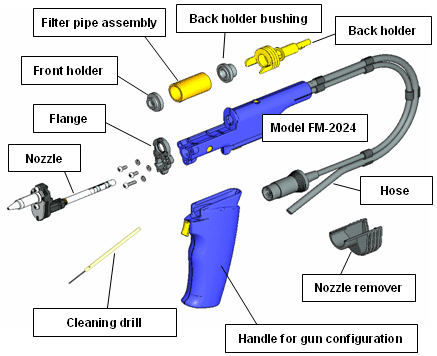

HAKKO FM-2024

Model	The set includes
No.FM2024-02		MODEL FM-2024/24V-70W 1. MODEL FM-2024 Desoldering tool 2. Handle (for gun configuration) 3. Filter pipe assembly 4. Instruction manual
No.FM2024-03		1. Iron holder 2. Cleaning sponge 3. Desolder control box (DCB) 4. MODEL FM-2024 Desoldering tool 5. Filter pipe assembly 6. Nozzle remover 7. Handle (for gun configuration) 8. Nozzle ø1.0 (No.N1-10) 9. Cleaning drill (for heating element) 10. Ceramic paper filter (10 pcs.) 11. Cleaning pin (for nozzle ø1.0) *12. Instruction manual *No photo for No.12
No.FM2024-22		1. Iron holder No.FH200-06 (with cleaning sponge) 2. Desolder control box (DCB) 3. Cleaning drill (for heating element) 4. Filter pipe assembly 5. Ceramic paper filter (10 pcs.) 6. MODEL FM-2024 Desoldering tool 7. Handle (for gun configuration) 8. Nozzle remover 9. Connecting cable * Nozzle is not included. Purchase your required size separately
No.FM2024-**		1. Iron holder: No.FH200-05 (with HAKKO 599B tip cleaner) 2. Cleaning drill (for heating element) 3. Filter pipe assembly 4. Ceramic paper filter (10 pcs.) 5. MODEL FM-2024 Desoldering tool 6. Handle (for gun configuration) 7. Nozzle remover 8. Connecting cable * Nozzle is not included. Purchase your required size separately

HAKKO FM-2024

Model No.	FM-2024
Power consumption	70W (24V)
Temperature range	350 to 450ºC
Nozzle to ground resistance	<2Ω
Nozzle to ground potential	<2mV
Heating element	Composite heater
Cord length	1.2m
Total length	180mm (with Φ1.0mm nozzle)
Weight	65g (with Φ1.0mm nozzle)

DCB (Desolder Control Box)

Power Consumption	12W
Output	24V
Vacuum Generator Vacuum Pressure	Ejector type Max. 93kPa (700mmHg)
Suction Flow	20L/min
Tip to Ground Potential	< 2mV
Applied Air Pressure	490kPa (5.0kgf/cm2) When in use (trigger or button is pressed)
Compressed Air Consumption	46L/min
Outer Dimensions	119(W) x 45(H) x 172(D)mm
Weight	1.2kg

* Total length and weight (w/o cord, hose)
