ชุดเครื่องดูดตะกั่ว และหัวแร้งบัดกรีในตัวเดียวกัน สำหรับงานทั่วไป

Even easier-to-use FM Series Desoldering Tool

Vacuum pump type desoldering tool

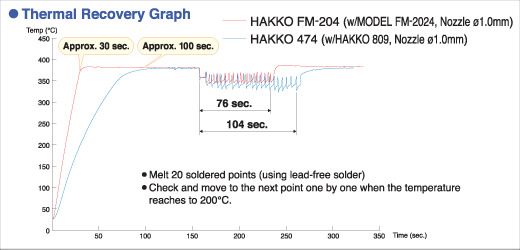

Excellent thermal recovery

The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.

Soldering work is possible by replacing the handpiece.

Connectible handpieces:
- Desoldering handpiece (HAKKO FM-2024)
- Soldering iron (HAKKO FM-2027)
- N2 soldering iron (HAKKO FM-2026)

Selectable grip

Two-way use of gun type and straight type is available.

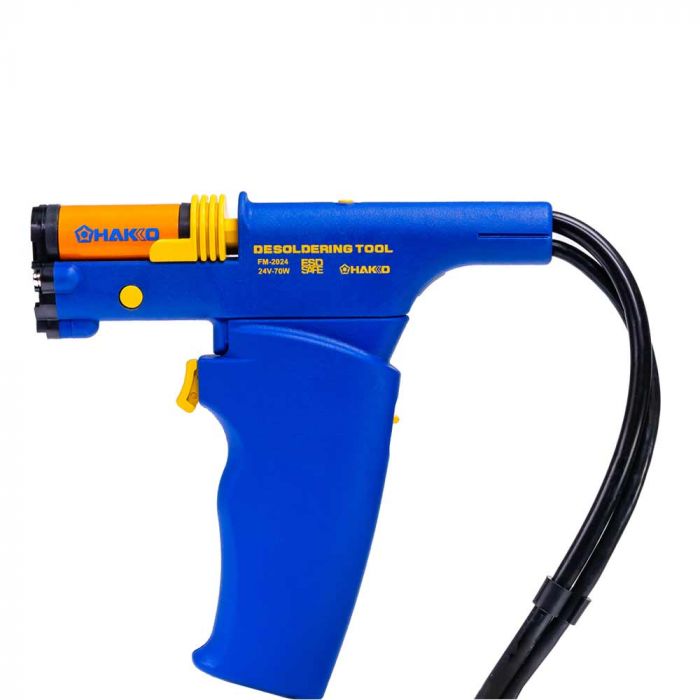

Gun configuration

Straight configuration

Easy maintenance

Filter pipe replacement:
- Disposable paper filter pipe
- Easy to dispose of paper and solder separately
Nozzle replacement:
- Safe to replace with nozzle remover
- Replaceable even before the end of nozzle has cooled down

Power save function

Sleep function:

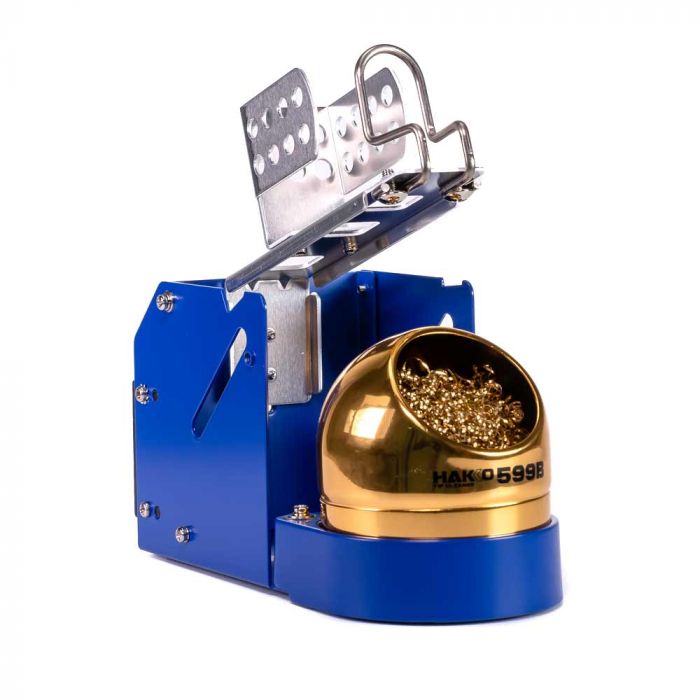

When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200°C , preventing the tip from being oxidized. In addition, this function can relieve the loads applied to the tip due to the high-temperature settings required for lead-free soldering
* The connecting cable enables the iron holder and temperature controller to be activated.

Auto power shut-off function:

By connecting the iron holder (HAKKO FH-200) to the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.
- Selectable buzzer and alert ON/OFF setting Buzzer and alert sound generation upon error and when reaching the setting temperature can be selected. ON/OFF-settable buzzer sound

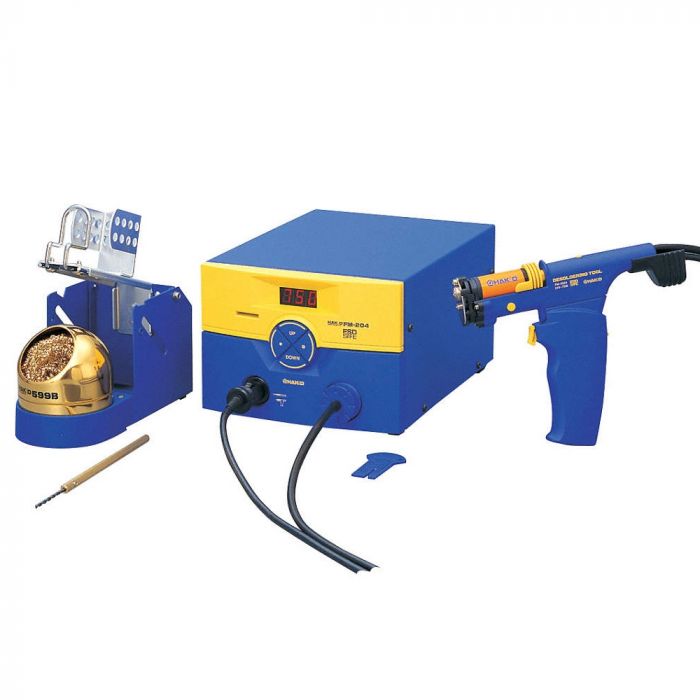

Model	The set includes
FM-204 HAKKO FM-204		1. Main unit (HAKKO FM-204 station) 2. Iron holder (No. FH200-05; with tip cleaner) 3. Ceramic paper filter (10pcs.) (for replacement) 4. Cleaning drill (for heating element) 5. Filter pipe assemblies (2pcs.) (originally equipped to the unit and one for spare*5) 6. Control card 7. Desoldering tool (Model FM-2024) 8. Connecting cable 9. Nozzle remover 10. Handle (for gun configuration) *11. Power cord *12. Instruction manual *13 Tip tray *No photos are shown for parts *5,*11, *12 and *13. * Nozzle not included

* This product does not include a nozzle. When purchasing this product, be sure to order a nozzle suitable for the work.

HAKKO FM-204

Model No.	FM-204
Power consumption	120W
Temperature range	FM-2024 : 350 to 450ºC FM-2026/2027 : 200 to 450ºC
Temperature stability	±5ºC at idle temperature

Station

Output voltage	AC 24V
Vacuum generator	Vacuum pump, double cylinder type
Vacuum pressure	Max. 80kPa (600mmHg)
Suction flow	15L/min.
Dimensions	160(W)×120(H)×225(D)mm
Weight	3.7kg

Desoldering Iron

Power consumption	70W (24V)
Nozzle to ground resistance	< 2Ω
Nozzle to ground potential	< 2mV
Heating element	Composite heater
Cord length	1.2m
Total length	180mm (with Φ1.0mm nozzle)
Weight	65g (with Φ1.0mm nozzle)

* The suction flow is measured at the filter case suction port of station.

* Total length and weight (w/o cord, hose)
