เครื่องดูดจับไอซี เป็นหัวดูดเพื่อจับอุปกรณ์อิเล็กทรอนิกส์ เพื่อนำไปใส่บนบอร์ด

Vacuum suction pick-up tool

Perfect for the pick-up of various types of electronic components

· Suitable for the pick-up of flat packages, chip resistors, etc.
· Applicable also for the pick-up of sphere-shaped objects and small objects.

Equipped with a built-in pump

· A built-in pump eliminates need for an air supply unit. The unit is operable immediately in any area with a power supply.

High suction force

· Can pick up objects weighing up to 120g (when a ø7mm pad is attached).

Antistatic product

Specifications of pad

Nozzle Single Use

*The maximum pickup performance shown above slightly differs depending on the surface of the object.

*Please take off the stopper when you use A1165 without pad.

Use Nozzle with Pad

Nozzle

Pad

Usage/Application

Applications

Closing the hole on the grip triggers suction, and opening it stops suction.The pick-up tool is designed to suck up micro components used for PCBs, etc. and not to absorb dust. If used to absorb dust, it may become inoperable due to the clogging of the filters mounted inside.

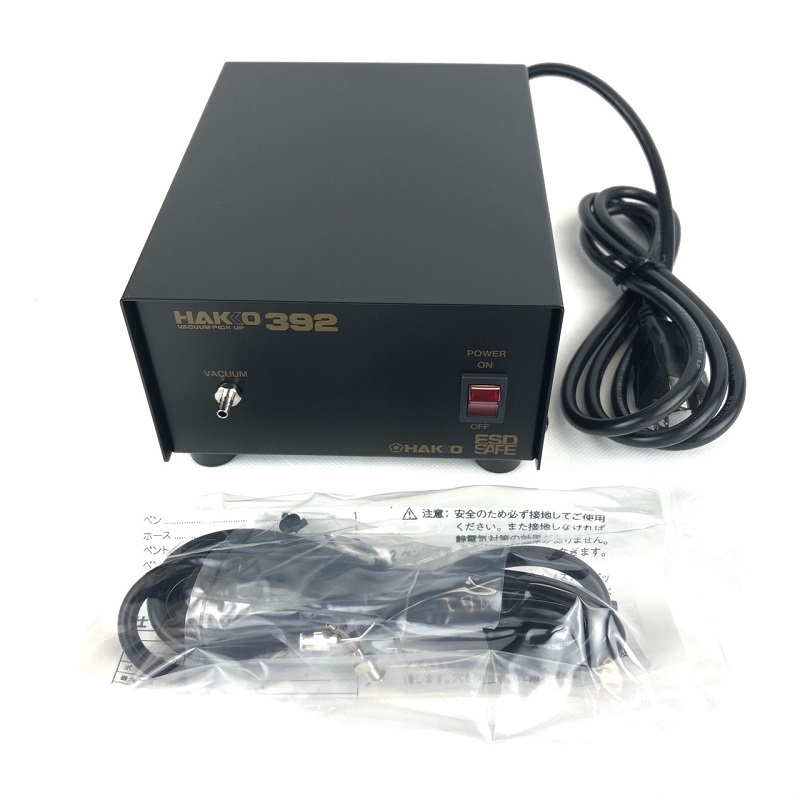

Model	Packing List
No.392	Station, Pen, Hose, Bent Nozzles(0.4mm and 1.1mm),Pads(Ø3 and Ø7)

Model No.	392
Power consumption	5W
Maximum pressure	37.3kPa (280mmHg)
Pad	Conductive silicone rubber
Dimensions	Station : 132(W)×83(H)×170(D)mm Pen : Φ10×123(L)mm Hose : 1.1m
Weight	Station : 1.65kg Pen : 25g
