หัวแร้งบัดกรีแบบปากกา สามารถปรับอุณหภูมิได้อย่างง่ายดาย ออกแบบให้มีขนาดเล็กน้ำหนักเบา จับถือได้อย่างคล่องตัวเพื่อการใช้งาน เป็นระยะเวลานาน ๆ

Optimal for soldering work where a high amount of heat is required.

Suitable to solder chassis,large connector,transformer.

Superior heat conductivity

T19 series soldering tips feature an redesigned appearance and internal structure that deliver improved heat conductivity. Use these soldering tips to achieve great heat recovery without increasing power consumption..

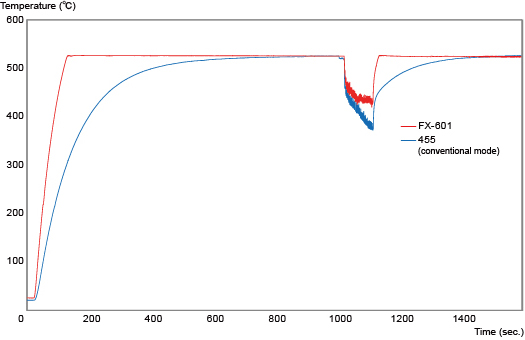

Test criteria

Measurement method	A thermocouple is mounted on the tip and the tip temperature is measured when soldering Φ1.6mm×5mm solder to paper phenol copper board once every 3 seconds.
Board	Paper phenol copper
Tip shape	Shape-5D
Solder	Lead-free solder ( Sn / Ag / Cu ), diameter: 1.6mm

* FX-601 is set at the same temperature of 455 by measuring the actual temperature.

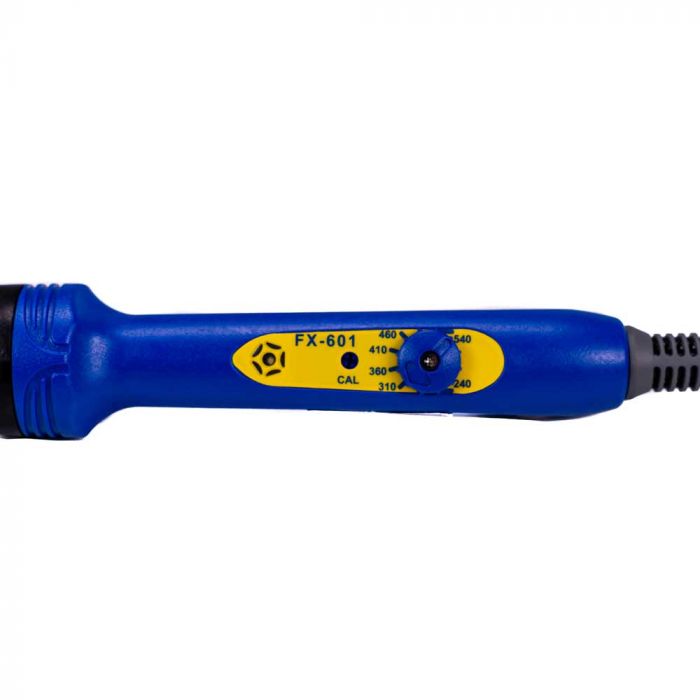

Compact and light weight

FX-601 has excellent heat recovery but is compact, light weight and well-balanced

HAKKO FX-601 and HAKKO456

Comparing with the conventional heavy duty iron,FX-601 is easy and simple to handle.

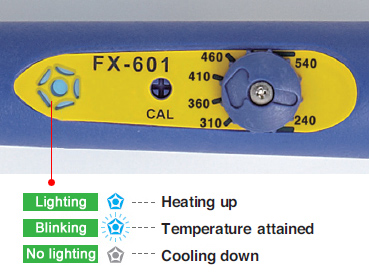

LED informs you when the set temperature has been reached.

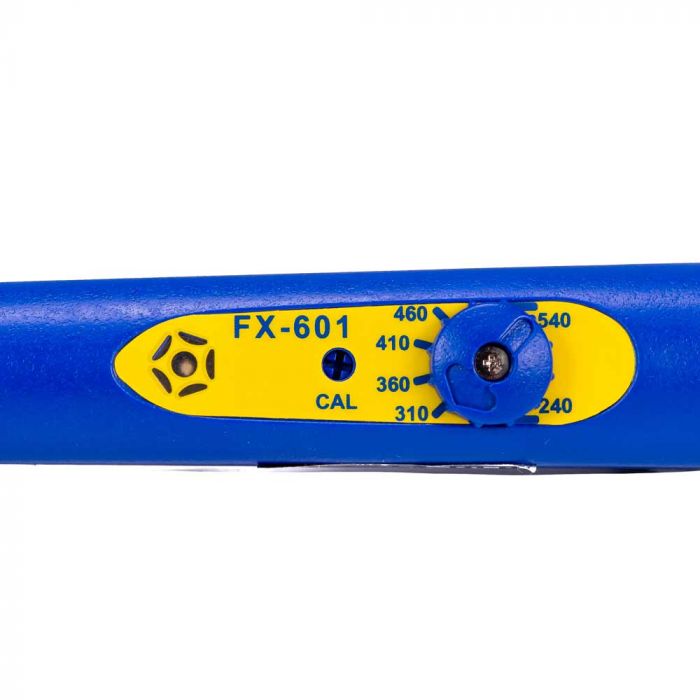

Adjust the temperature easily with the control knob

Features a temperature controller built into the grip. Easily adjust the temperature with a simple turn of the knob.

Turn CAL to have more accurate temperature

Adjust the temperature easily with the control knob

Features a temperature controller built into the grip. Easily adjust the temperature with a simple turn of the knob.

* Accurate temperature control performed even outside the scale.

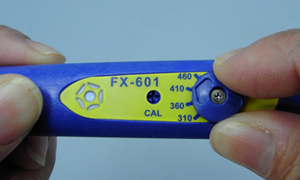

Detach the control knob and lock the temperature setting

Temperature setting can be locked by removing the central screw and detaching the control knob. After detaching the control knob, you can change the temperature setting using the dedicated lock key. * Designed so that the temperature setting can not be easily changed without using the dedicated lock key.

How to remove the control knob Adjustment using the lock key

* To avoid any damage to the head of the small screw on the knob, use a Phillips screwdriver #00 to remove or tighten it.

Change parts to convert your FX-601 into an FX-600 that's optimal for soldering electronic parts!

Reduce costs by converting to either model using interchangeable parts (Tip enclosure with Nut/Soldering Tip).

HAKKO FX-601

Model	Packing List
HAKKO FX-601	HAKKO FX-601, Lock key, Instruction manual.

HAKKO FX-601

Model No.	FX-601
Power consumption	AC100V：47W AC110V：56W AC120V：67W AC220V：42W AC230V：46W AC240V：50W
Temperature range	240-540ºC
Temperature stability	±1ºC at idle temperature
Tip to ground resistance	<2Ω
Tip to ground potential	<2mV
Heating element	Ceramic heater
Total length	237mm (with 2B tip)
Weight	68g (with B tip)

* Total length and weight (w/o cord).

เลือกซื้อปลาย T19 Series T19 Series
Shape BC/C (T19)

---

Shape B (T19)

---

Shape D (T19)

---

Shape I (T19)

---
