อ่างหลอมตะกั่วแบบดิจิตอล สำหรับจุ่มบัดกรี สามารถบรรจุปริมาณตะกั่วได้มาก

FX-301B contains long-life "specialy coated solder pot" as a standard feature.

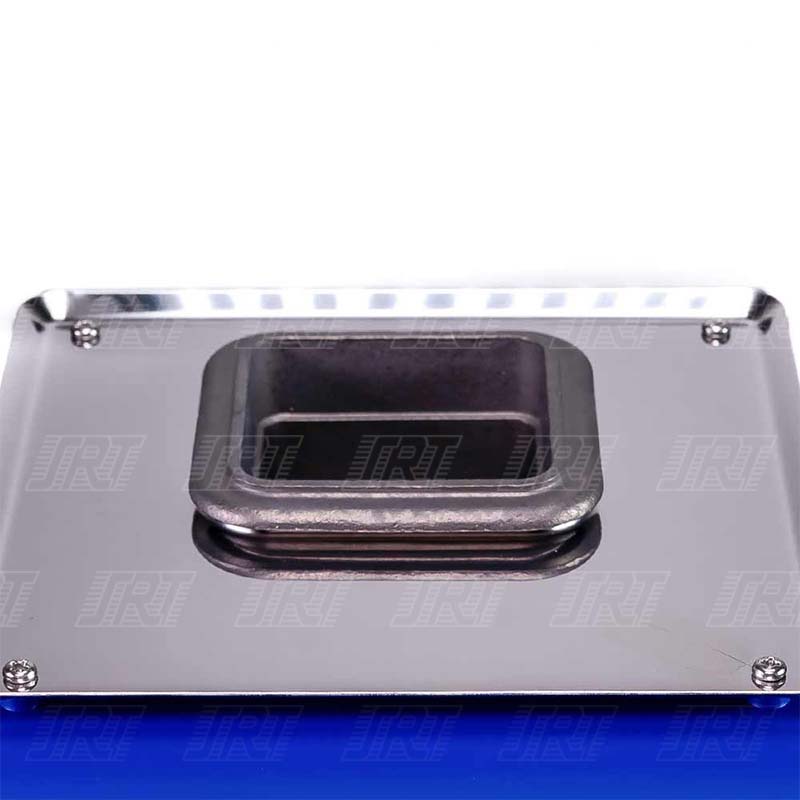

Specially Coated Solder Pot (Durable type)

* Anti-corrosion effect enables the pot last 5 times longer than the conventional one.(By our anti-corrosion test)
* Be effective on both lead-free solder and solder with lead (eutectic).

Environmentally-friendly design

* Heating element parted left and light enables to be replaced separately.
* Enables to reduce the amount of solder usage and solder dross

Selectable heating program (Suitable for various kinds of solder)

* Selectable heating programs allows to get optimum temperature quickly.
* Select from four heating programs: Sn-Pb (Tin/Lead), Sn-Ag-Cu(Tin/Silver/Copper),
* Sn-Cu (Tin/Copper), and Sn (Tin).

Precise temperature control

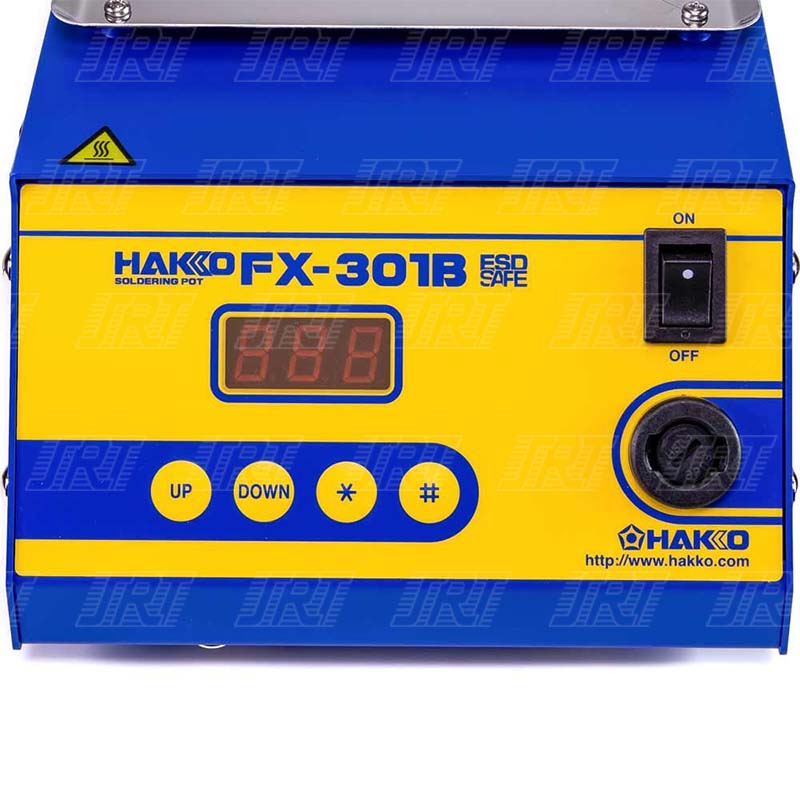

* The digital display ensures reliable temperature control, and offset function.

Easy pot replacement

* Just loosen the two screws to replace the pot. Use different pots for different composition solder, or different pot sizes (50mm square and 75mm square).

Convenient timer function

* A timer function helps you keep tabs on how long the soldering pot has been in use, making it easy to judge the time for pot replacement.

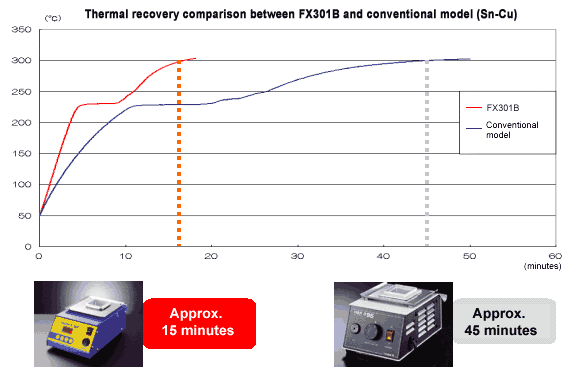

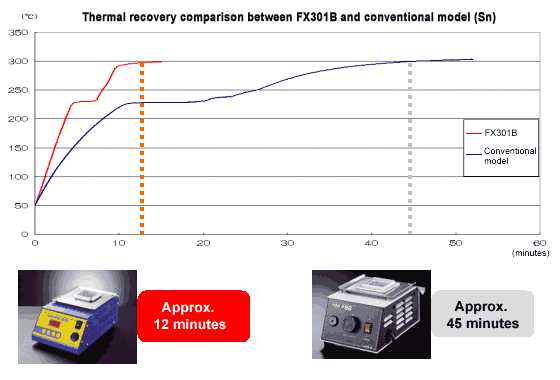

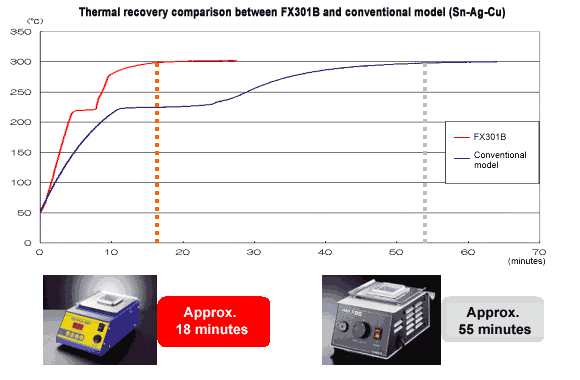

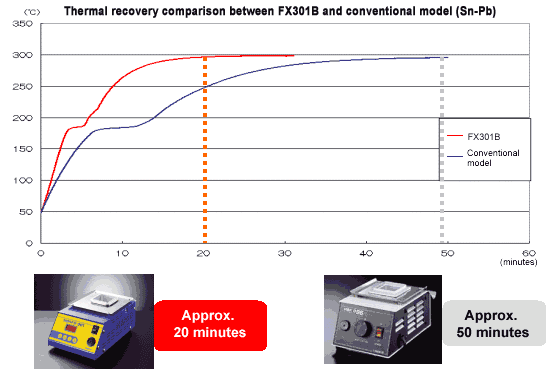

Thermal Recovery Time Compared With Conventional Model

A timer function helps you keep tabs on how long the soldering pot has been in use, making it easy to judge the time for pot replacement.

* The composition of the solder is shown as a guide. Select the composition which is the most closest to the solder to be used.

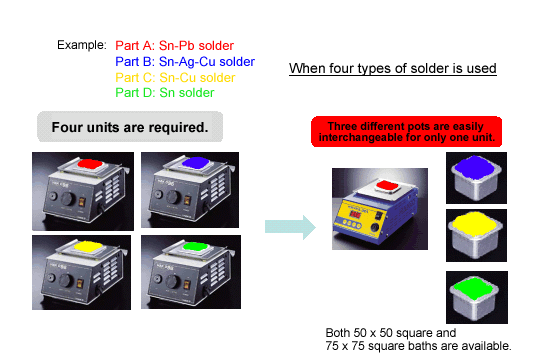

Easy pot replacement

The pot can be easily replaced by just removing the screws. One unit can be used in various applications by changing pots for each solder type or by using pots of different sizes (50 × 50 or 75 × 75 square).

* For your safety, be sure to replace the pot after the solder completely cools.

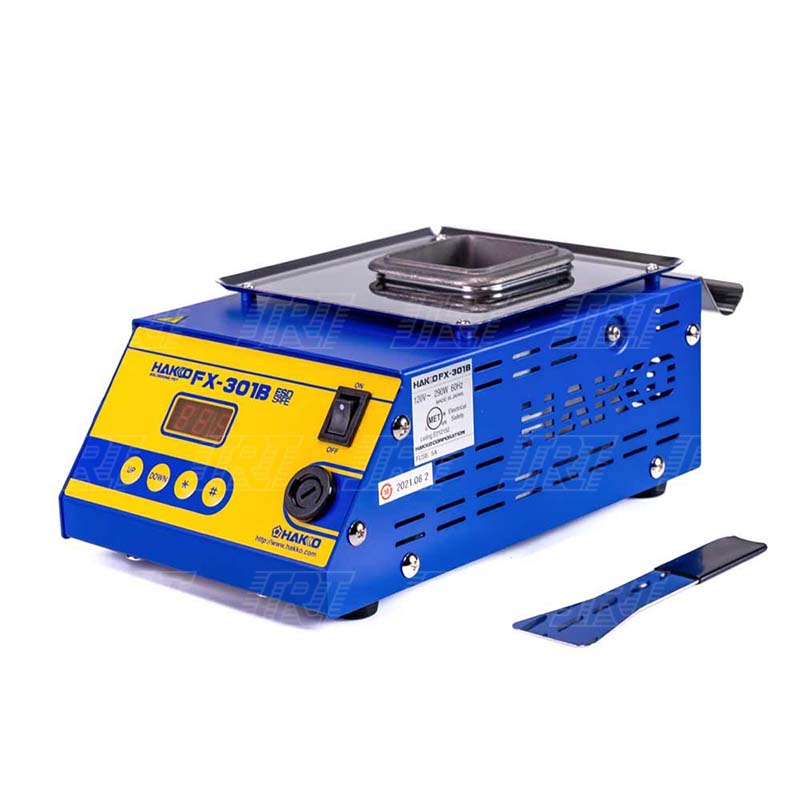

HAKKO FX-301B

Model	Packing List
HAKKO FX-301B	Unit (with solder bath: 50 × 50 square), Spatula, J-shaped Waste Collector, Hexagon Wrench, Instruction manual.

Model No.	FX-301B
Power consumption	200W (100V), 260W (110V), 290W (120V), 240W (220V), 260W (230V), 280W (240V)
Dimensions	143(W)×100(H)×220(D)mm
Weight	1.7kg

-Pot

Temperature range	50×50 square : 200 to 450ºC  75×75 square : 200 to 380ºC
Dimensions of solder pot	50×50 square durable type : 50(W)×43.5(H)×50(D)mm  75×75 square durable type : 75(W)×52.5(H)×75(D)mm
Molten solder capacity	50×50 square : 0.85kg   75×75 square : 1.2kg

* Weight (including battery)
* The 50×50 square solder pot is originally installed. The 75×75 square solder pot is an optional part.
