เครื่องปอกสายไฟด้วยความร้อน เหมาะกับงานที่ต้องการความเร็วในการปอกสายไฟ

Thermal wire stripper solves common problems caused by using hand tools.

Doesn't damage wire cores

Doesn't cut strands

Handle designed for up to Ø12mm leads

Cuts insulation cleanly

Strip superfine lead wires with ease

Perfect for stripping single wires

Damaged wire cores and cut strands are serious problems that can result in broken connections caused by vibration, expansion, contraction, and other external factors. The military, medical and aviation industries demand precise quality, and this applies equally to finishing ends on wires with delicate insulation. The HAKKO Thermal Wire Stripper is a remarkable product that adequately meets these kinds of demands for superior quality and provides improved efficiency and maintenance.

Topics

Removing the insulation from superfine wires is a difficult task that can produce minute scratches leading to broken connections if done incorrectly. Thermal wire stripping is a safe, stress-free, and above all accurate way of removing insulation.

Grips designed for continuous work

Blade hinge extendes for up to Ø12mm to strip thick cables.

Solves the problem of whiskers and scratches left by conventional tools

Four features make the insulation removal process smoother than ever before.Comfortable grip makes continuous work a breeze.

Improved Safety and Maintenance

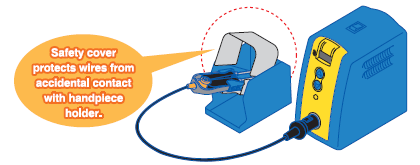

Safety cover for handpiece holder prevents accidents

Handpiece holder features a safety cover for safer operation.This guards against accidents such as burns to hands and arms and burnt wires caused by accidental contact with the handpiece holder during operation.

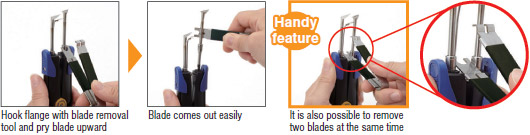

Purpose-designed tool makes replacement of hot blades easy

Replace hot blades simply and safely. A choice of three replacement blades covers a wide range of wire gauges, and there is no need to replace the entire handpiece every time blades wear out.

Password lock for process control

Power setting value and parameter setting can be locked with six letters.

Connection cord enables flexible movement

Thin, ø4-mm cord makes work easy. New cord design ensures smooth, stress-free movement. Never get your arms tangled up again.

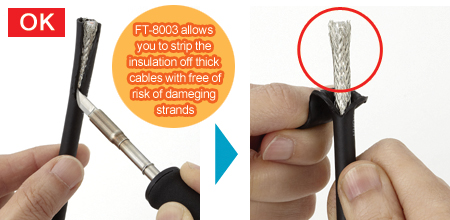

Option blade can handle even very thick cables

HAKKO FT-8003 can strip insulation off thick leads that HAKKO FT-8002 could not.

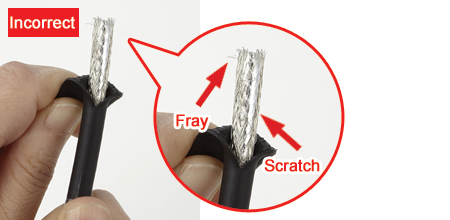

If cut with a knife blade
It is not recommended to use a knife blade for cable stripping due to the high risk of cutting in the conductor or fraying shield that can result in ruining the cable.

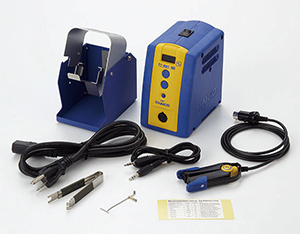

Model	The set includes
HAKKO FT-801		HAKKO FT-801 Station, HAKKO FT-8002, lead adjuster assembly, power cord, handpiece holder (with cover), connecting cable, blade removal tool, wire material label, instruction manual

Model No.	FT-801
Power consumption	68W/50W

Station

Output voltage	AC 24V
Dimensions	80(W)×130(H)×131(D)mm
Weight	1.2kg

Wire Stripper (FT-8002)

Power consumption	64W (24V)
Cord length	1.3m
Total length	96mm
Weight	48g

Optional Wire Stripper (FT-8003)

Power consumption	46W (24V)
Cord length	<2m
Tip to ground resistance	<2Ω
Tip to ground potential	1.3mV
Total length	155mm
Weight	27g

* Power consumption is 50W when the optional FT-8003 is used instead of FT-8002.

* Weight for station (w/o cord)

* Length and weight for handpiece (w/o cord, blade)
