TIP CLEANER 100V-220V W/FLAT 2 PIN PLUG เครื่องทำความสะอาดปลายหัวแร้ง ช่วยให้การทำความสะอาดที่ดี

Tip cleaner having both wire-type and sponge-type advantages

Prevents solder from splashing when cleaning.

· Inserting just the tip into the receptacle completely prevents solder from splashing.

Two-types of brushes control how much solder is removed.

· Solder removal status can be adjusted by plastic brushes and metallic brushes. With wire-type cleaners, excessive amounts of solder remain on the tip, which causes solder to splash when soldering. With sponge-type cleaners, oxidation is promoted, which causes shorter tip life.
· A tip cleaner with both wire-type and sponge-type advantages eliminates the above problems when soldering.

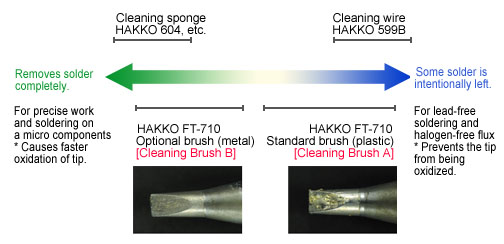

Comparison of how much solder is removed by the different cleaning methods<
* The photos show the iron tips T12-D24.

Minimizes decrease in temperature of the tip while cleaning.

· Inserting the tip turns the brush automatically; no need to switch it on and off.
· Reduces the tip cleaning time between soldering works to increase work efficiency.
· The electric rotary cleaner provides a uniform final cleaning status with no differences between individuals.

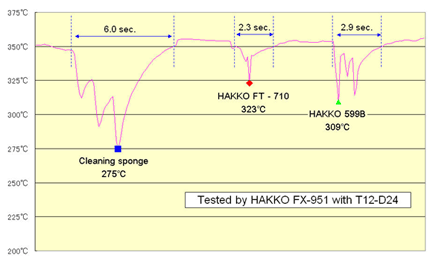

Comparison of decrease in tip temperature by cleaning method
If decrease in temperature is small, the time for a single cleaning also becomes short.
Because cleaning is performed many times per day, the overall working time can be also shortened.
Time for single cleaning (The time for a single cleaning is measured as the time until the tip
temperature reaches the set temperature after cleaning.)

HAKKO FT-710	Approx. 2.3 sec. (reference value)
Wire-type HAKKO 599B	Approx. 2.9 sec. (reference value)
Cleaning sponge	Approx. 6.0 sec. (reference value)

The low-noise design relieves stress due to noise during work.

* This cleaner is very quiet in comparison with competitor's electric tip cleaner.

Easy to maintain

· Easy-to-replace brushes
→ Brushes can be replaced without removing any screws.
· Solder left inside is stored in "Solder waste collector".
→ Solder does not splash all over the inside of the main body.
· Safe design prevents brushes from turning unexpectedly during replacement.
→ The brush cannot be replaced unless the AC adapter is unplugged.

This tip cleaner can be attached to HAKKO iron holders HAKKO FH-101, FH-200 and FH-201.

· This tip cleaner can be attached to any of the above 3 iron holders using just 2 screws. For other iron holders, this tip cleaner can be placed next to the iron holder.

* The HAKKO FT-710 itself cannot be used as an iron holder. Be sure to use it together with an iron holder.

Usage/Applications

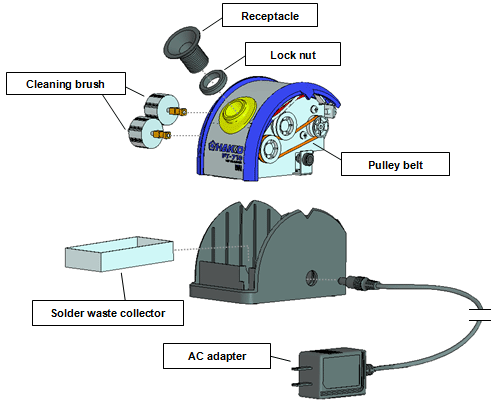

Category	Cleaning mechanism
How to use	How to ground the HAKKO FT-710
How to use	Approx. 6.0 sec. (reference value)
How to use	Combinations of the HAKKO FT-710 and iron holders

* Some soldering irons or tip shapes are NOT available.Please check 'Specification' if your soldering iron or tip shapes are available.

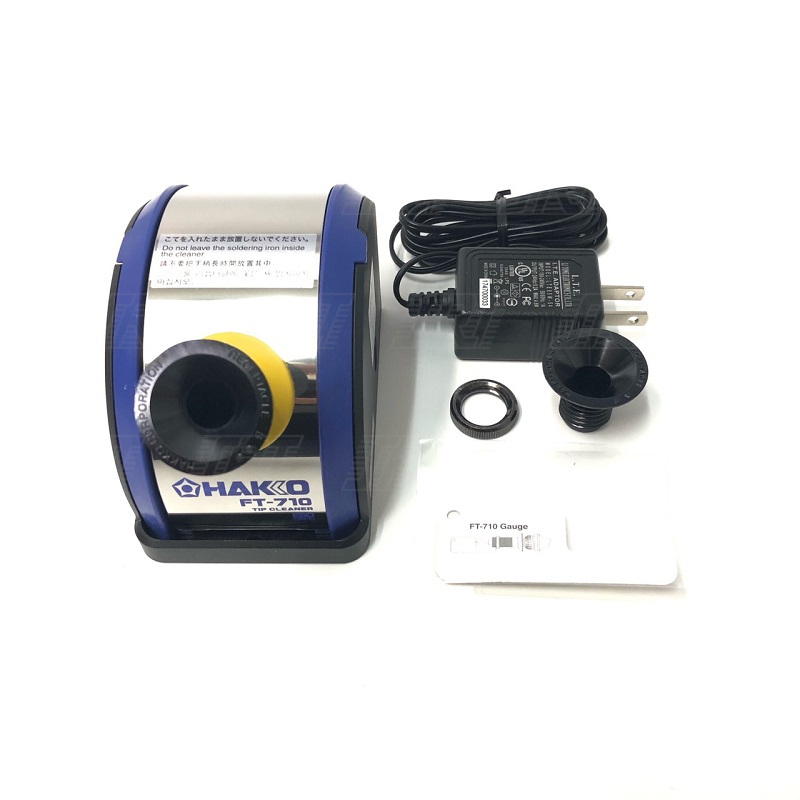

Model	Packing List
HAKKO FT-710	HAKKO FT-710, AC adapter, Receptacle A and B, Lock nut, Solder waste collector, Gauge, Instruction manual

NOTE: Optional Part Receptacle C being purchased, HAKKO 917(Discontinued) (Station HAKKO 938(Discontinued)) and HAKKO FX-8301(Station HAKKO FX-838) are also available.

Model No.	FT-710
Rating	DC 24 V 130 mA
Brush rotational speed	2,500rpm
Standard receptacle	Receptacle A and B
Dimensions	71(W)×77(H)×107(D) mm
Weight	450g

・AC Adapter

Output voltage

DC 24 V

Applicable Soldering Iron List

Receptacle	Soldering tip	Unusable shape	Custom-ordered shape	Soldering iron
Receptacle A	T7 series	T7-JL02 Spatula	T7-KF	HAKKO FM-2027 Station:HAKKO FM-202 (Discontinued)
	T11 series	-	-	HAKKO FX-901
	T12 series	T12-JL02 Quad Tunnel Spatula	T12-WB2 T12-WD08 T12-WD12 T12-WD16 T12-WD52 T12-WI T12-DL52 T12-KF	HAKKO FM-2027/2028 for Japan, Oceania, Asia & Other countries Station:HAKKO FM-203, HAKKO FX-950, HAKKO FX-951, HAKKO FX-952, etc.
	T15 series	T15-XD15 T15-JL02 T15-JD14 T15-JD16 T15-R48 Quad Tunnel Spatula	T15-1603 T15-1605 T15-BC15 T15-BC28 T15-CF2 T15-CF3 T15-SB03	HAKKO FM-2027/2028 for North America & EU. Station:HAKKO FM-203, HAKKO FX-950, HAKKO FX-951, HAKKO FX-952, etc.
Receptacle B	T14 series	-	-	HAKKO 957 (Discontinued)
	T18 series	-	-	HAKKO FX-8801 Station:HAKKO FX-888(Discontinued),HAKKO FX-888D
	900 M series	900M-T-H 900M-T-1.8H	900M-T-LB 900M-T-1.2LD	HAKKO 900 Type Medium HAKKO 907 Station: HAKKO 928, HAKKO 936 (Discontinued),HAKKO 937 (Discontinued) etc.
Receptacle C(Optional Part)	T10 series	-	T10-J02 T10-K T10-KL T10-KU T10-LB T10-LI	HAKKO 917 (Discontinued) Station: HAKKO 938 (Discontinued)
	T13 series T17 series	-	-	HAKKO FM-2026 Station: HAKKO FM-203, HAKKO FX-950, HAKKO FX-951, HAKKO FX-952, etc.
	T20 series	-	T20-K T20-KU T20-BL T20-BL2 T20-BL3	HAKKO FX-8301 Station:HAKKO FX-838
	T22 series	-	T22-C3 T22-BL T22-BL2 T22-D45 T22-J02 T22-K	HAKKO FM-2030,HAKKO FM-2031 Station:HAKKO FM-206

*Soldering iron other than listed above (HAKKO FX-100, HAKKO FM-2032, Built-in solder feed type,Nichrome heater type and HAKKO 455/456), and Desoldering / Rework are not available.

*Some soldering irons and tip configurations cannot be used with receptacles A/B.Be sure to confirm applicable soldering irons and tip configurations from the applicable soldering iron list.

* Optional Part Receptacle C being purchased, HAKKO 917 (Station HAKKO 938) and HAKKO FX-8301(Station HAKKO FX-838) are also available

*Some soldering irons and tip configurations cannot be used with receptacles A/B. Be sure to confirm applicable soldering irons and tip configurations from the applicable soldering iron list .
