เครื่องอุ่นบอร์ด เพื่อง่ายต่อการถอดชิ้นส่วนอิเล็กทรอนิคส์ เหมาะกับถอดอุปกรณ์ที่ PCB หนา และอุปกรณ์ถอดยาก

Carbon heaters lamps provide powerful support for insufficient heat when reworking and mounting post-production add-ons

Entire work surface heats rapidly for instant use and improved efficiency

Six carbon heaters let you preheat the whole board in next to no time after turning the power on. Full-board heating and quick temperature ramping let you get the job done quickly when reworking ormounting post-production components to multilayer substrates that require greater thermal capacity. As it does not contaminate the air, the HAKKO FR-870B also offers powerful support for a clean workplace environment in industrial applications.

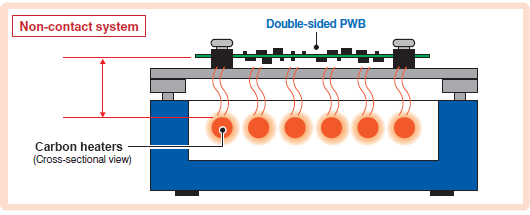

Non-contact system can be used with double-sided boards

Non-contact system allows preheating of double-sided boards, which hot plates cannot handle.

Set thermal profiles

Auto mode step-heating method (maximum of three steps/step 1-3) heats PWBs slowly and evenly,letting you transmit 100% of the heat energy from a rework system and soldering iron. You'll never be forced to work with a higher set temperature due to insufficient heat again.

Power Mode
Power mode lets you control heater output using settings from 0% to 100%.

T/C Mode
Once the temperature of the sensor attached to the board reaches the set temperature, the heater is on-off controlled so that the board temperature can be maintained at the set temperature.

Auto Mode
Auto mode provides three steps (Step 1-3) to create an optimal heating profile for the work in question, letting all operators consistently produce work of the same quality. Programs can be set for ten channels in each mode.

Power Mode

T/C Mode

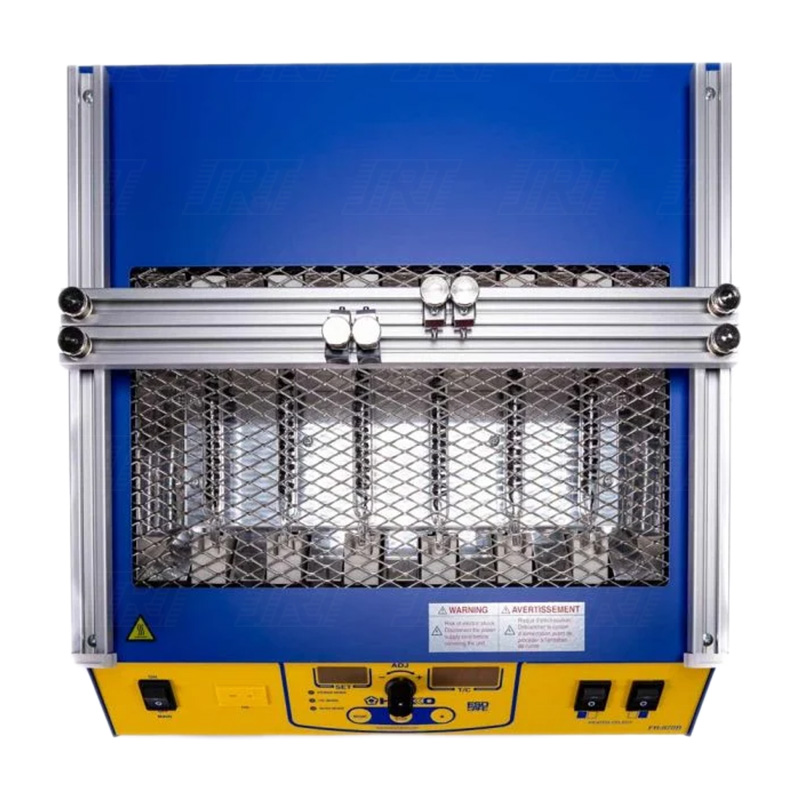

Board attachment system facilitates continuous work

Once a PWB is positioned, boards of the same dimensions can be removed or attached in a single motion.
This design greatly facilitates continuous work.

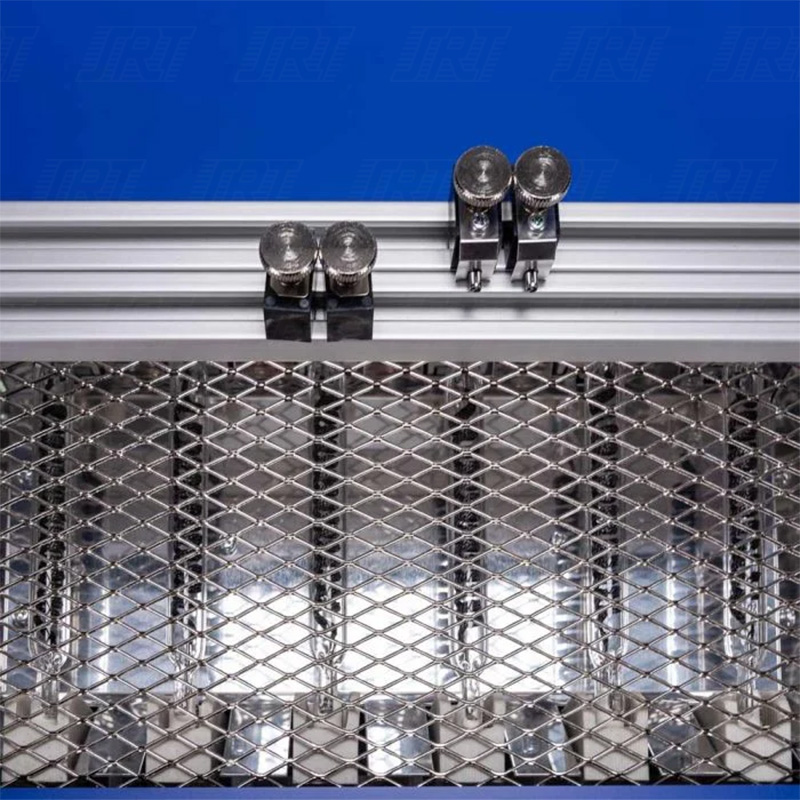

Adjust screws to match board width and length.

Boards are hot after operation and must be handled with care.

Model	Picture	Packing List
HAKKO FR-870B		Preheater unit, thermocouple (type K), power cord, heater lamp (spare), instruction manual

* Weight (w/o cord)

* Lamp life is provided for reference purpose only and is not guaranteed.
