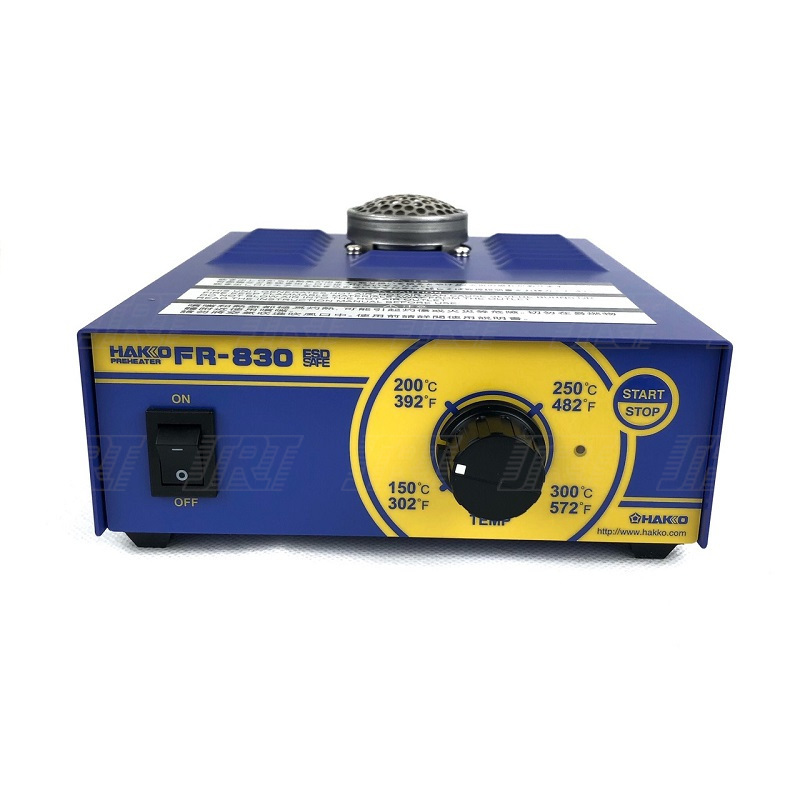

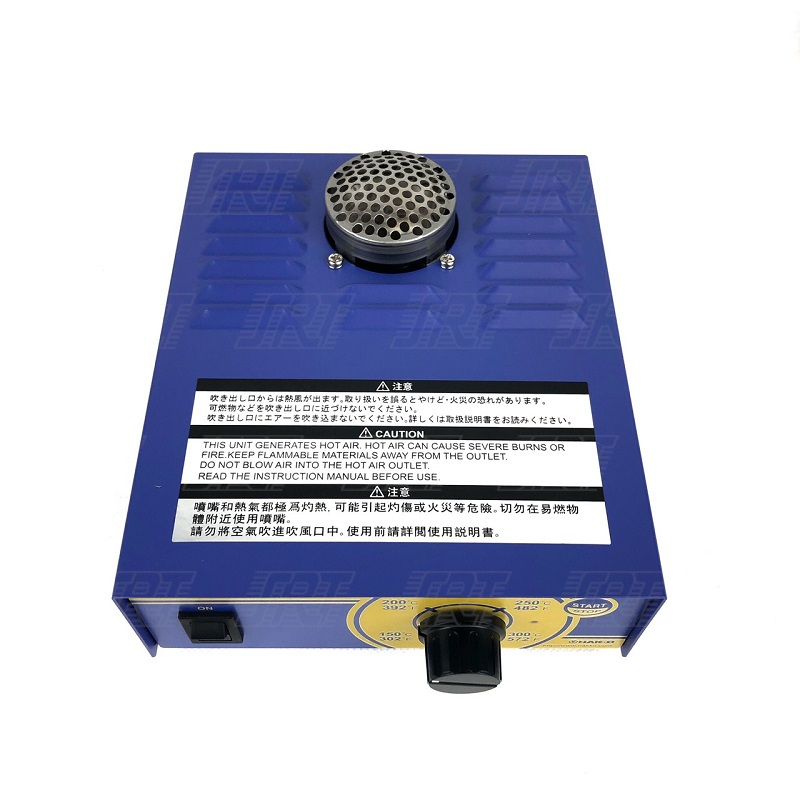

เครื่องอุ่นบอร์ด เพื่อง่ายต่อการถอดชิ้นส่วนอิเล็กทรอนิคส์ เหมาะกับถอดอุปกรณ์ที่ PCB หนา และอุปกรณ์ถอดยาก

Compact pre-heater with quick start-up and excellent heat recovery.

Combined with HAKKO FR-803B(SMD Rework Station)

Easy attachment with connecting cord which is included in HAKKO FR-803B

·Upgraded working efficiency by heating parts from top and bottom
·Operating FR-820 with buttons of HAKKO FR-803B
(Start Ventilating/Cooling Down by pressing “HOT AIR” button on Handpiece of FR-803B)
· Automatically cool down after turning off the power

Temperature regulating function

· Temperature range 150-300°C(302-572°F)
· CAL enables fine adjustment of temperature.

Preheating in short time

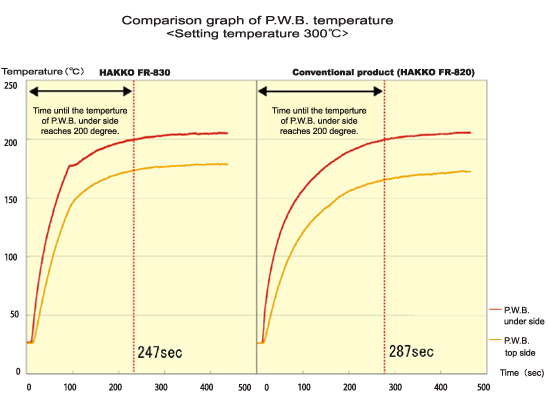

· The improved air outlet shorten preheat time compared with air conventional product.

* Please refer to above values, which vary depending on soldering condition.
·Hot air temperature 300ºC
·A gap between the hot air outlet and the PWB for 10mm
·Attach sensors to top/under sides of P.W.B and measure temperature.

Suitable for multi-layer board preheating

Automatic cool-down function mounted.

· Pushing the "START/STOP" button at the end of work automatically activates the cool-down function.

Compact, lightweight, and slightly larger hot air outlet.

Various types of optional functions

· Local heating enabled.
A set of [Extension pipe w/ Lid] is available.

Various types of switching!

[Hand switch][Foot switch] can be connected.

Using the optional equipments

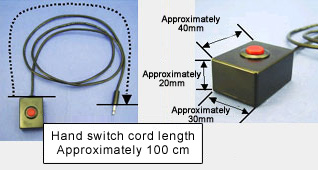

Hand switch		Connection cord length: Approximately 100 cm Switch size: Approx. 30mm (W) × 40mm (D) × 20mm (H) When using the hand switch, switching is not possible on the main device.
Foot switch		Connection cord length: Approximately 135 cm When using the foot switch, switching is not possible on the main device.

Controlling the temperatures of Hot Air Rework System and workpiece using the Temperature Probe New
Measure temperatures of Hot Air Rework System and workpiece using the Temperature Probe for Hot Air Rework System (No. C1541) and thermometer (HAKKO FG-100/HAKKO FG-101) to protect the workpiece.

Replacement parts for Temperature Probe for Hot Air Rework System(No. C1541)
How to Use the Temperature Probe for Hot Air Rework System(No. C1541)

-Measuring example

* Please refer to above values, which vary depending on soldering condition.
Measuring condition
·Hot air temperature 300ºC
·A gap between the hot air outlet and the PWB for 10mm
·Attach sensors to top/under sides of P.W.B and measure temperature.

Usage/Application

Please keep a gap between the hot air outlet and the PWB for more than 10mm to allow the air to flow. When there is not enough space for the air to flow, the fuse may blow up.

How to use

When should the optional Temperature Probe for Hot Air Rework System(No. C1541) be used?

The Temperature Probe for Hot Air Rework System (No. C1541) is equipped with 2 types ofsensors. Before measuring temperatures as follows, connect the sensor to the thermometer.

Sensor A: When measuring the temperature of hot air blown from the nozzle:Correcting thermal control can be made by confirming the temperature of the hot air that is actually blown.

Sensor B: When measuring the temperature of applicable parts (workpieces):Rework can be performed without causing damage to the parts being reworked (QFP, etc.)

How to Use the Temperature Probe for Hot Air Rework System(No. C1541)

Model	Packing List

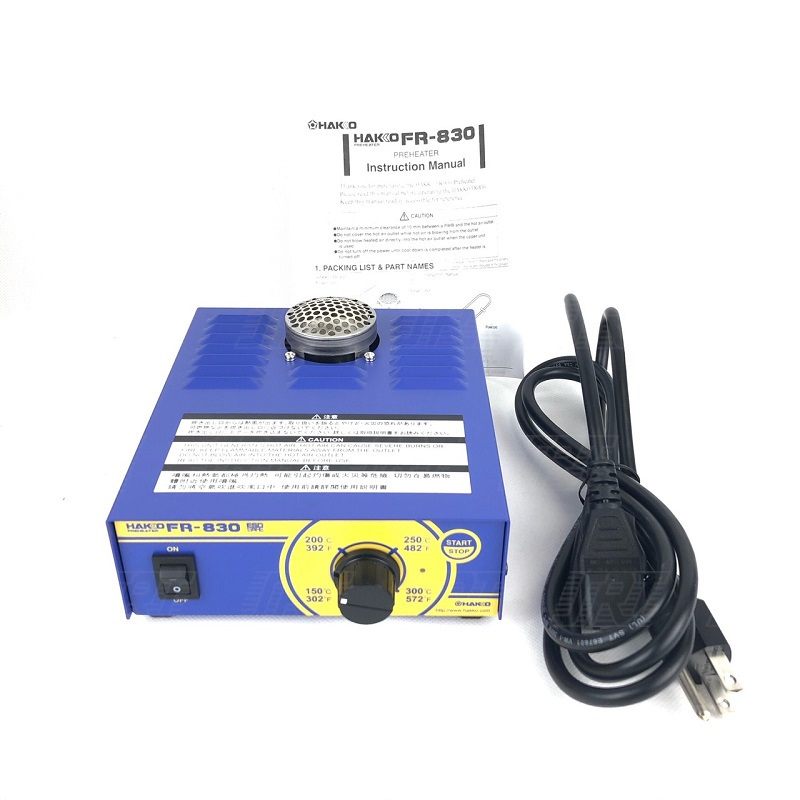

HAKKO FR-830	HAKKO FR-830, Power cord, Instruction manual

Model No.	FR-830

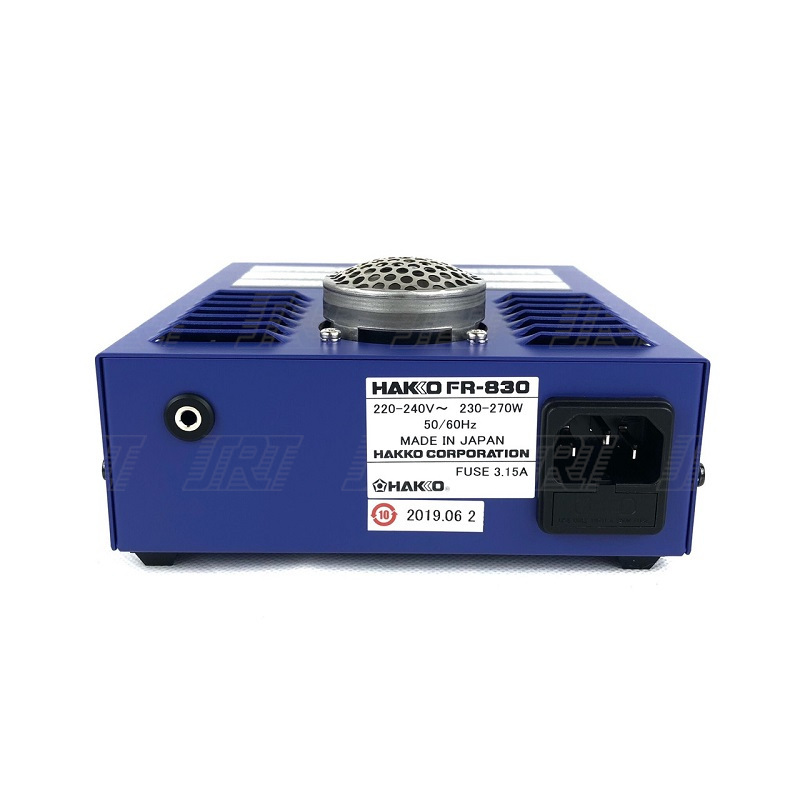

Power consumption	210W (100V), 240W (110V), 470W (120V), 230W (220V), 250W (230V), 270W (240V)
Air flow	0.15m3/min. (fan capability)
Temperature range	150 to 300ºC (Above the blow exit)

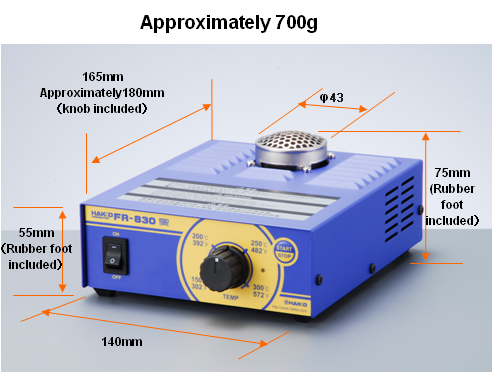

Dimensions	140(W)×75(H)×185(D)mm
Weight	0.75kg

* Weight (w/o cord)

* Height(H) is the distance from bottom of the feet to the top of the hot air outlet.
