เครื่องเป่าลมร้อนที่ควบคุมการทำงาน แบบดิจิตอล เหมาะกับการถอดอุปกรณ์ชิ้นเล็ก และมีปลายให้เลือกมากมาย สามารถเก็บข้อมูลลงคอมพิวเตอร์ได้

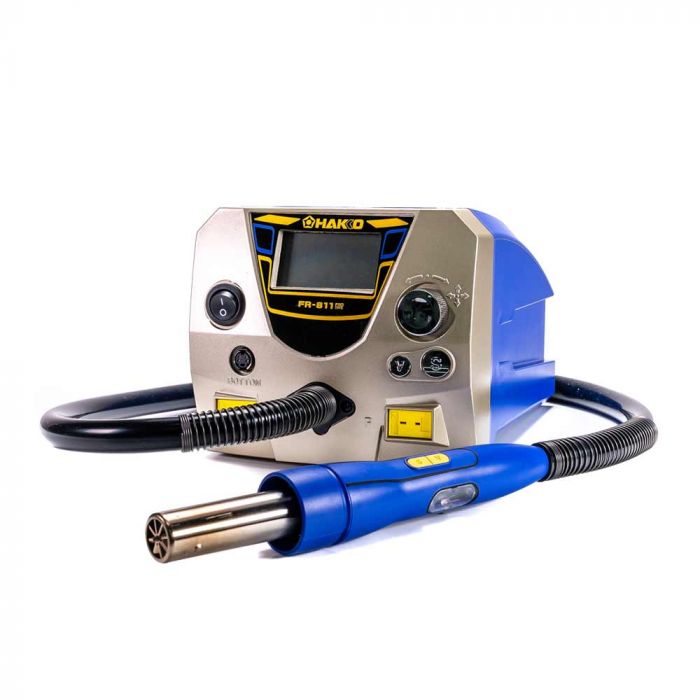

Introducing a high-spec hot air rework station with excellent cost performance

Operate on a computer with the dedicated software

The functions needed for SMD rework are in a compact body

A low cost SMD rework can be assembled with FR-811, dedicated software and options.

Possible to make full-scale thermal profiles with 6-zone hot air and a bottom heater.

A basic thermal profile is composed of the 5 parts shown above. FR-811 can provide 6 zones in which temperature, time, and air flow are controlled. Therefore FR-811 can make a full-scale thermal profile which is close to reflow profiles made by a reflow oven.

Record thermal data

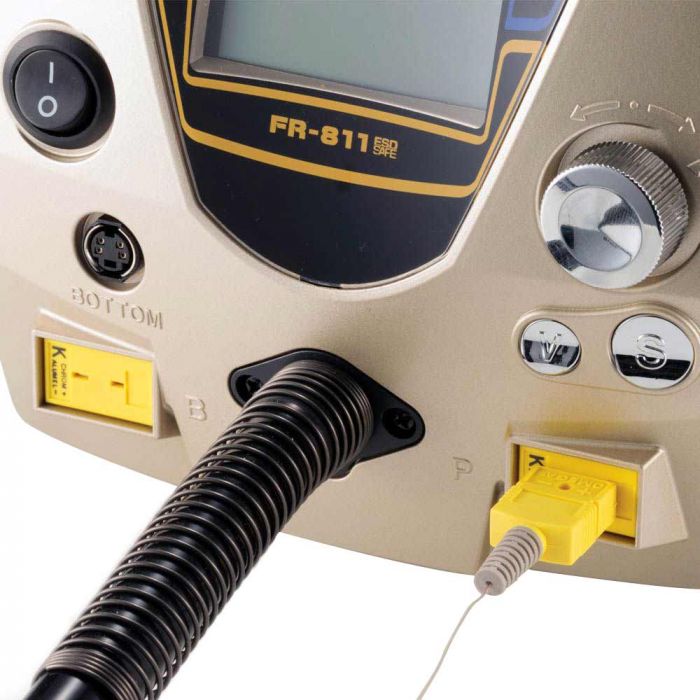

By connecting a thermocouple included with FR-811, the temperature of the component or circuit board can be measured and recorded. In addition, if "TC LINK" is set, the heater output can be automatically controlled so that the temperature of the thermocouple attached to the component or circuit board follows the set profile.

Operation on a PC for various settings

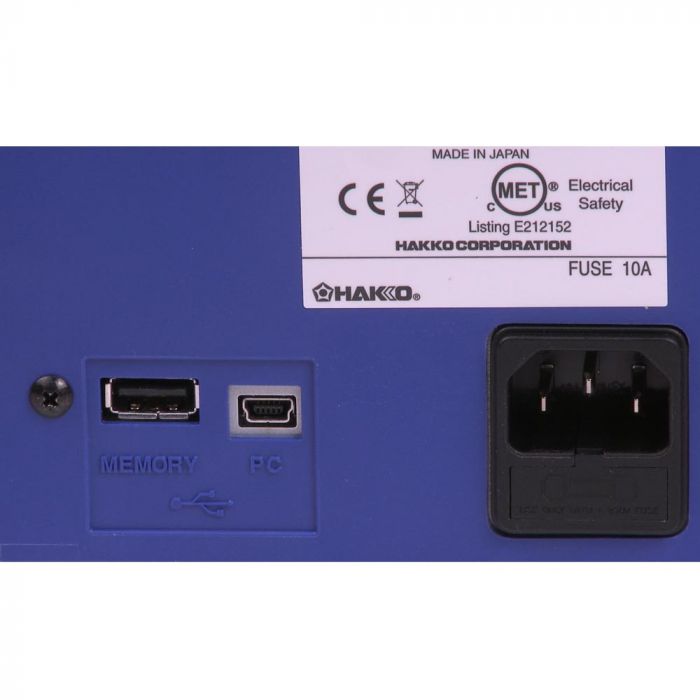

By connecting FR-811 and a computer with a USB cable and using the dedicated software which comes as standard, a set thermal profile and actual temperature change can be shown in a graph in real time. Also, change of thermal profile and fine adjustment in a profile can be made on a computer operation. (After making changes, it is necessary to resend the data to FR-811.)In addition, the set values and graph can be saved in csv format.

Linked operation with bottom heater

FR-811 can control on/off timing and output of the bottom heater, which is available optionally.

High power and large volume hot air for quick removal of components

A tool that can provide powerful hot airflow for repairing high heat capacity circuit boards that require high blow volume and high output, and sufficient hot airflow for appropriate blow volume and high output for high-density mounting substrates.

New user friendly functions for SMD rework

Interface designed for intuitive operation. Possible to link to a PC

Use conventional HAKKO nozzles

Align the projection part, attach the conventional nozzle to the heater pipe.

*The heater pipe of HAKKO FR-810 (discontinued) has two projection parts. In order to use the conventional nozzle, put the conversion adaptor on the heater pipe that was included in your purchased HAKKO FR-810 as one of standard accessories.

Simple nozzle removal and easy maintenance

Nozzles can be quickly changed for many different types of components.
In addition, conventional nozzles are compatible. Heaters can also be easily and securely replaced.

Quick-change N51 nozzles

Simple heater replacement

Simple, tool-free removal and attachment.

Simply remove four screws to replace heater.

Timer function

Timer function is to control the time of operation.
This can help to prevent parts from overheating and can improve the overall quality of rework.

Chain presets function for making a simple thermal profile

The chain presets function is to make a simple thermal profile by combining several preset conditions. (Up to 5 steps) This can improve work efficiency a lot by standardizing work time, avoiding overheating, improving repeatability of operation, and making difficult rework jobs easy.

Auto sleep and auto shutoff features

To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function will be activated and it will start cooling automatically.
If the handpiece has not been removed from the handpiece holder (e.g. Using it in a rework fixture) and it has been idle for 30 minutes, auto shutoff function will be activated. It will be automatically powered off. Access to settings can be restricted by the password function.

Assembly of a low-cost SMD rework system

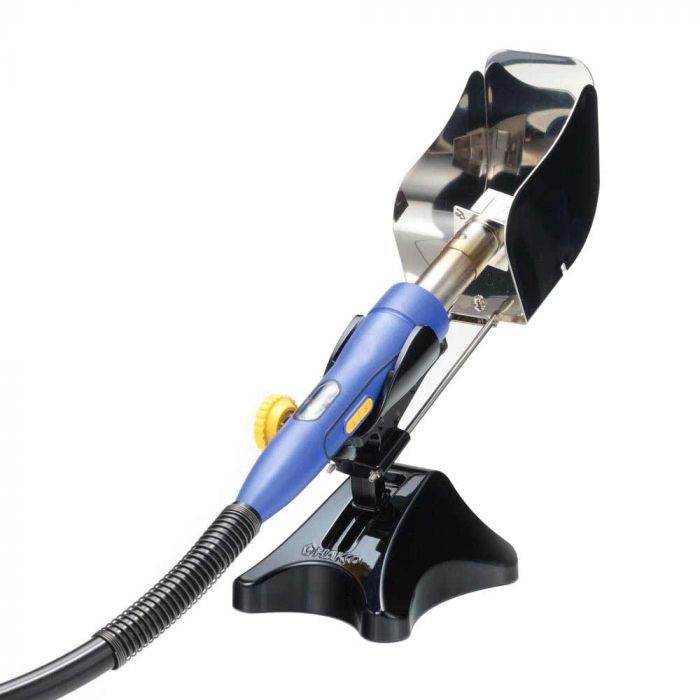

A low cost rework system can be assembled with a bottom heater, a grip fixture, and a board holder.

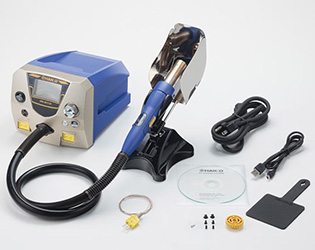

Model	The set includes
HAKKO FR-811		Station with handpiece, Grip stand assembly, Vacuum pipe control knob (with screw), Pads (qty 2 each of Ø3 mm, Ø5 mm, Ø7.6 mm), USB cable, Software (CD-ROM), Thermocouple, Heat resistant pad, Power Cord, Temperature distribution chart, Instruction manual * Nozzle not included

*HAKKO FR-811

Model No.	FR-811
Power consumption	700W (AC100V), 840W (AC110V), 820W (AC120V),1000W (AC220V), 1200W (AC230V), 1300W (AC240V)
Temperature range	50-600ºC (120-1120 ºF)

*Station

Power consumption	30 W
Air flow setting range	001-100% (5 to 115L/min.)
Dimension	160(W)×145(H)×220(D)mm
Weight	1.5kg

*Handpiece (Hot air)

Power consumption	670W (AC100V), 810W (AC110V), 790W (120V),1070W (AC220V), 1170W (AC230V), 1270W (AC240V)
Standard nozzle	Φ4mm (No.N51-02)
Total length	250mm
Weight	180g

* Total length and weight for handpiece (w/o cord, standard nozzle)

* Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.
