ชุดเครื่องดูดตะกั่ว สำหรับถอดชิ้นส่วนอะไหล่ อิเล็กทรอนิคส์ ขนาดใหญ่

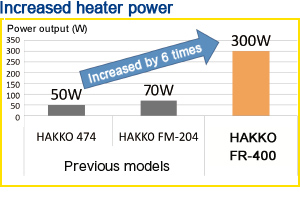

300 WATT!! tremendous power enables nearly impossible desoldering on PWB with high heat capacity and high heat dissipation property.

300 W tremendous power makes incredible heating.

Secure desoldering, valve function that suctions with high pressure

Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.

Reduction of solder clogging

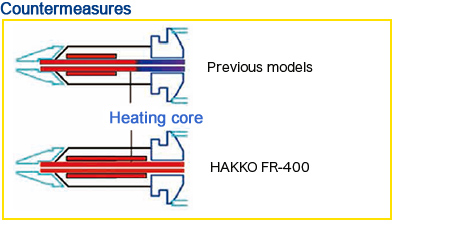

* Improvement in heating core
Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging.

* Featuring ACF (Anti Clogging Function)
ACF ensures suctioned solder be carried to filter pipe by keeping pump running for a second after releasing trigger.

Improvement in maintainability

* Featuring new filter pipe 3 times larger than the previous model
The new filter pipe is 3 times larger than the previous model and applicable to operation on large components. This is not disposal type and for repeatable use.

* Easy heater replacement
Easy heater replacement by removing 3 screws on the part of heating core.

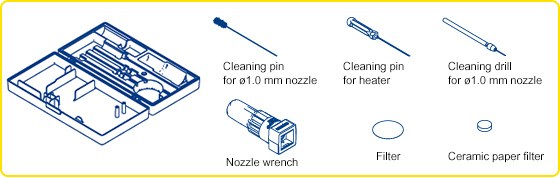

* Tool box for maintenance kit
A tool box that contains of maintenance tools such as cleaning pins for nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.

* Larger filer and more transparency
A tool box that contains of maintenance tools such as cleaning pins for nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.

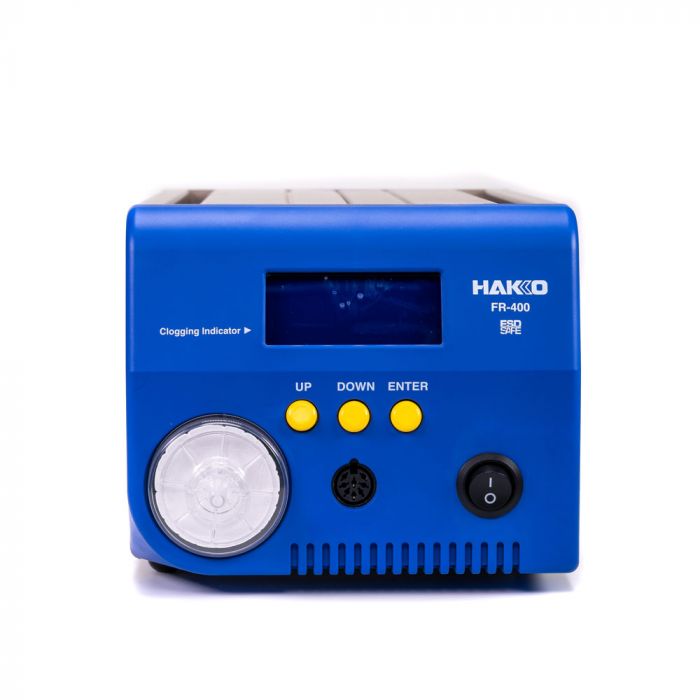

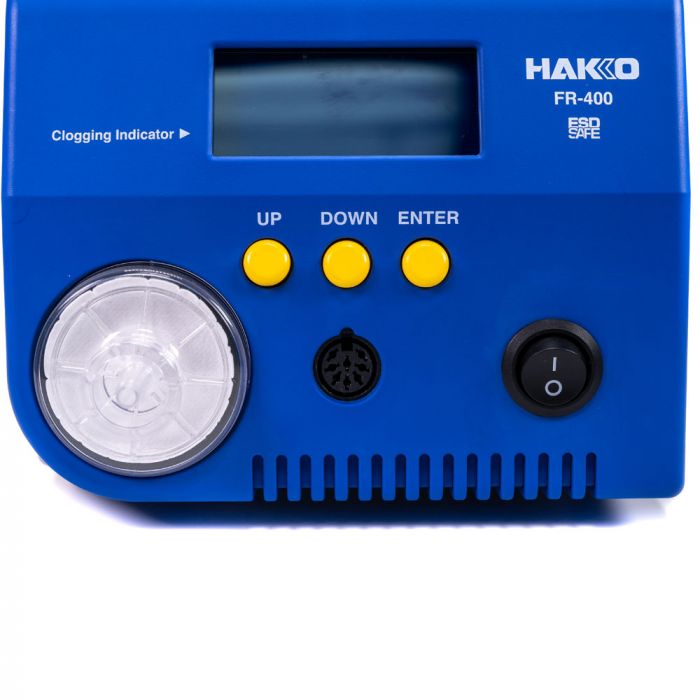

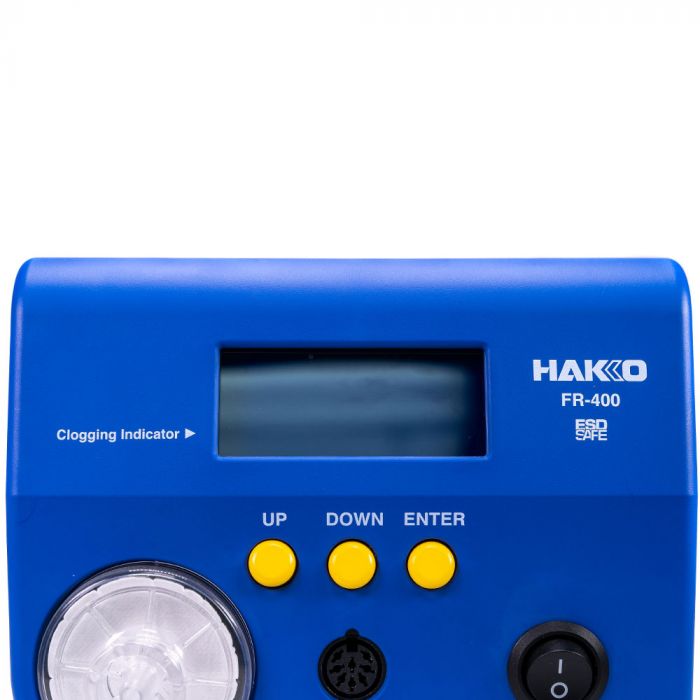

Featuring a large LCD display

Very easy to see temperature on the large LCD display Vacuum indicator to check clogging

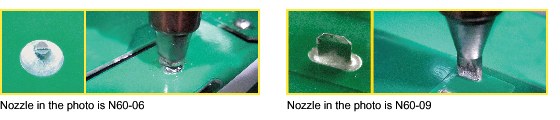

Lineup of nozzles for large components

Nozzles applicable to shapes like 2 mm or larger diameter lead or flat termination are lined up.

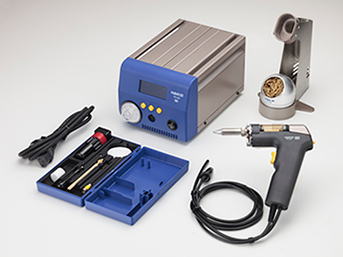

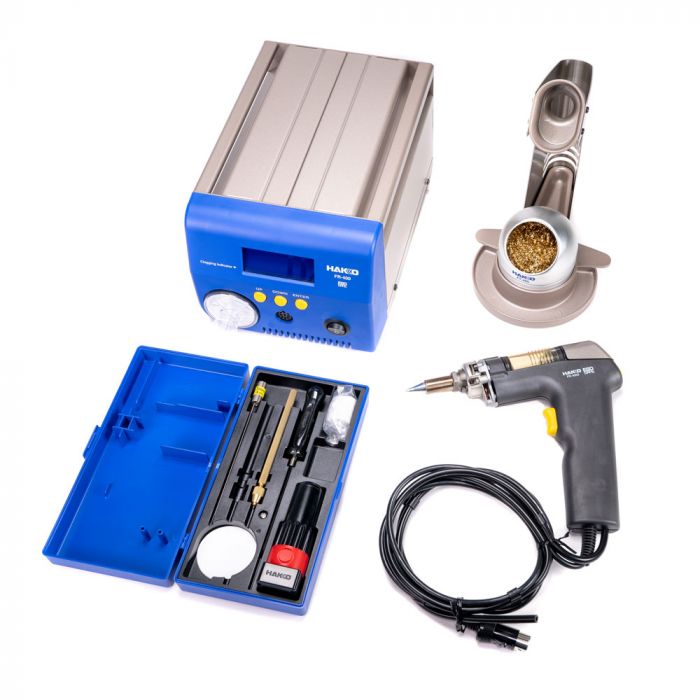

Model	The set includes
HAKKO FR-400		Station, Desoldering tool（FR-4003）, Power cord, Iron holder (with cleaning wire), Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]), Instruction manual

HAKKO FR-400

Model No.	FR-400
Power consumption	320W
Temperature range	350-500ºC
Temperature stability	±5ºC at idle temperature

Station

Output voltage	AC 29V
Vacuum generator	Double cylinder type
Vacuum pressure	Max. 80kPa (600mmHg)
Suction flow	15L/min
Dimension	166(W)×137(H)×2640(D)mm
Weight	5.7kg

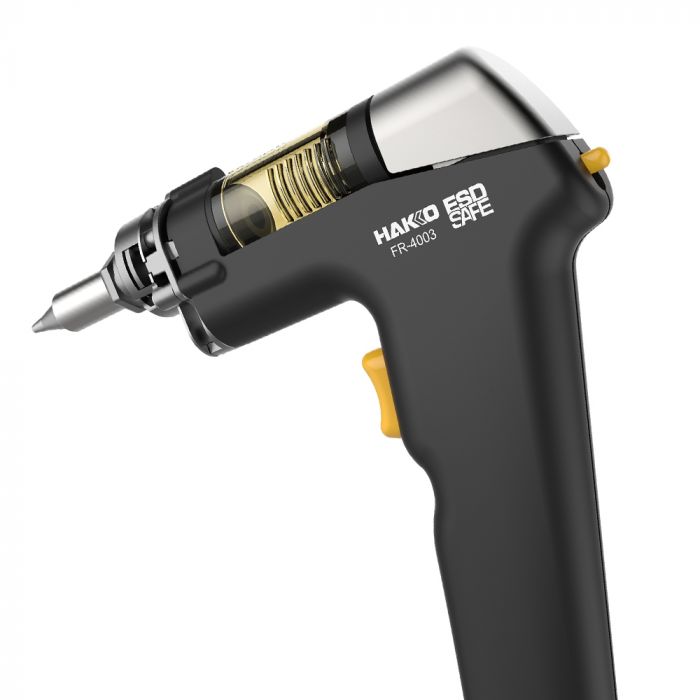

Desoldering Tool

Power consumption	300W (29V)
Nozzle to ground resistance	< 2Ω
Nozzle to ground potential	< 2mV
Heating element	Composite heater
Standard nozzle	Φ1.0mm type (No.N60-02)
Cord length	1.2m
Total length	183mm (with Φ1.0mm nozzle)
Weight	270g (with Φ1.0mm nozzle)

* The suction flow is measured at the filter case suction port of station.

* Total length and weight (w/o cord, hose)
