เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี และเครื่องดูดตะกั่ว เหมาะกับงานซ่อมทั่วไป

A single station plays multiple roles: Soldering, desoldering, and SMD rework

Two handpieces can be selected in various combinations

*This station is equipped with one HAKKO FM-2027 handpiece.

A wide range of handpiece selection

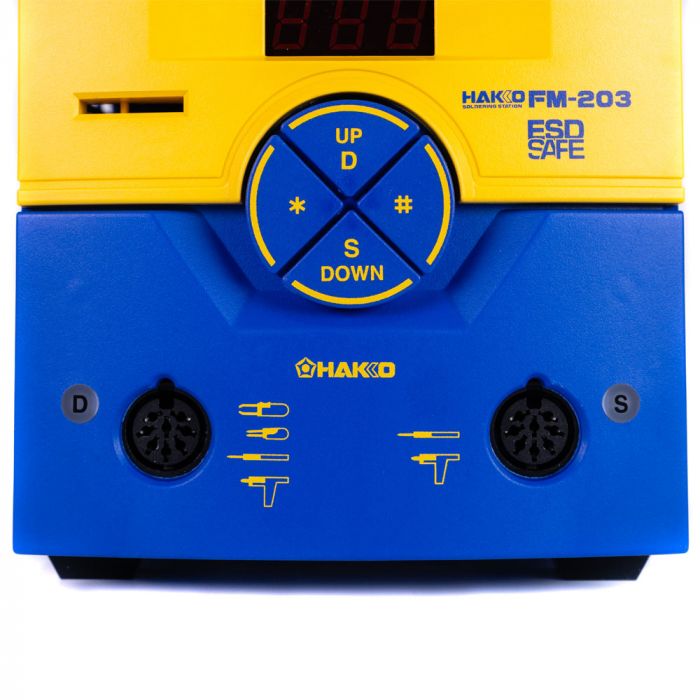

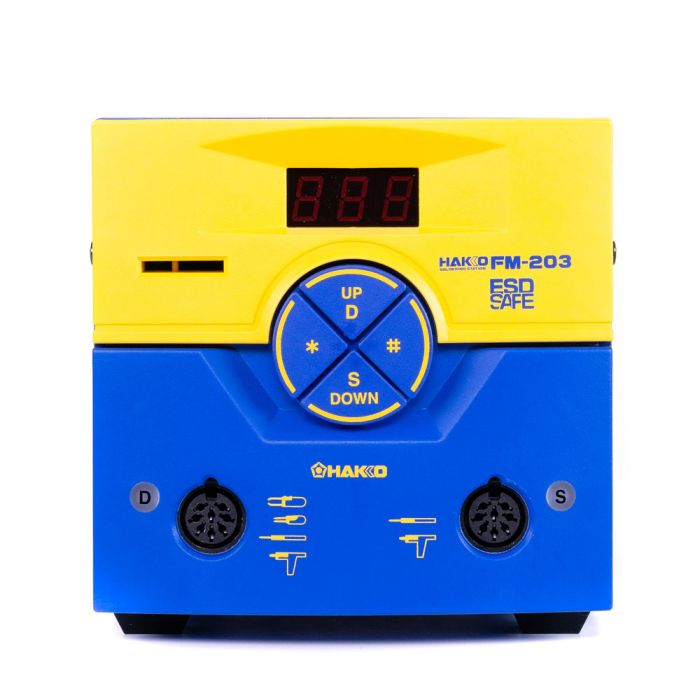

Figures of connectable handpieces are shown on the connectors as well as the indications of "Channel D" and "Channel S".

Handpiece combination examples

Simultaneous use.	Channel D	Channel S
Yes	HAKKO FM-2027 Soldering iron	HAKKO FM-2027 Soldering iron HAKKO FM-2024(*1) Desoldering tool HAKKO FM-2026(*2) N2 soldering iron HAKKO FM-2032 Micro soldering iron
No Either one of handpieces operates	HAKKO FM-2022 Rework tool(direct heat-type)
No Either one of handpieces operates	HAKKO FM-2023 Rework tool(direct heat-type)
Yes	HAKKO FM-2024(*1) Desoldering tool
Yes	HAKKO FM-2026(*2) N2 soldering iron
Yes	HAKKO FM-2032 Micro soldering iron

*1 For HAKKO FM-2024, each handpiece needs a desoldering control box and compressor.
*2 For HAKKO FM-2026, each handpiece needs an N2 generator (HAKKO FX-780), flowmeter (HAKKO FX-791), compressor, regulator, etc. For further details, refer to the combination examples.

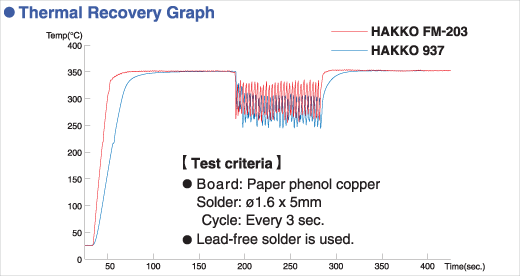

Poweful thermal recovery performance

See how much its thermal recovery is improved by using a composite tip

Power save function

· Sleep function: While the handpiece is being placed on the iron holder (HAKKO FH-200), the sleep function is activated and decreases the temperature of tip on the holder up to approximately 200°C , preventing the tip from being oxidized. In addition, this function can relieve the load applied to the tip due to the high-temperature settings required for lead-free soldering.

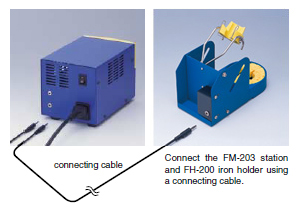

· Auto power shut-off function : By connecting the iron holder (HAKKO FH-200) and station with the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.

Combined use with an optional handpiece (HAKKO FM-2026, etc.) enables use of the N2 system

Buzzer ON/OFF setting is available

· Whether to make the buzzer sound or not when an error occurs or a target temperature is reached is settable.

Model	The set includes
FM-203 HAKKO FM-203		Station + One Soldering Iron 1. HAKKO FM-203 Station 2. Soldering iron(HAKKO FM-2027) 3. Control card 4. Heat resistant pad 5. Iron holder(No. FH200-01: with HAKKO 599B tip cleaner) 6. Tip tray *7. Power cord *8. Connecting cable *9. Instruction manual: 1 for each * No photos are shown for parts *7 through *9. * Nozzle not included

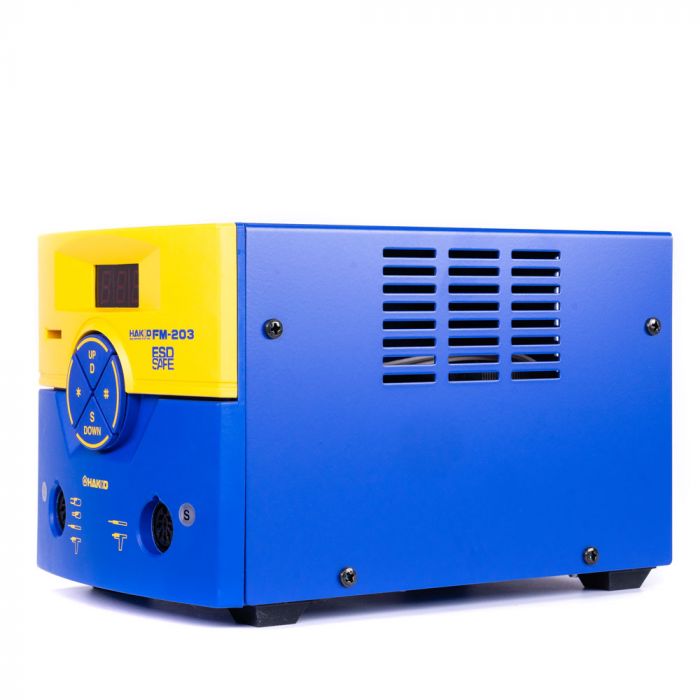

HAKKO FM-203

Model No.	FM-203
Power consumption	140W
Temperature range	FM-2026/2027：200 to 450ºC FM-2022/2023：200 to 400ºC FM-2024：350 to 450ºC FM-2032：200 to 450ºC
Temperature stability	±5ºC at idle temperature

Station

Output voltage	AC 24V
Dimensions	120(W)×120(H)×190(D)mm
Weight	2.7kg

Soldering Iron

Power consumption	70W (24V)
Tip to ground resistance	< 2Ω
Tip to ground potential	< 2mV
Heating element	Composite heater
Cord length	1.2m
Total length	188mm (with 2.4D tip)
Weight	30g (with 2.4D tip)

* Total length and weight (w/o cord)

For the HAKKO FX-950, soldering iron tips are not supplied as accessories. Please purchase soldering iron tips.
-T12 Series for Japan, Oceania, Asia & Other countries. -T15 Series for Nouth America & EU. เลือกซื้อปลาย T12 Series T12 Series
Shape BCM/CM (T12)

---

Shape BC/C (T12)

---

Shape B (T12)

---

Shape D (T12)

---

Shape I (T12)

---

Shape J (T12)

---

Shape K (T12)

---

Shape Quad (T12)

---

Shape Tunnel (T12)

---

Shape Spatula (T12)

---

Shape Concave (T12)

---
