หัวแร้งบัดกรี ใช้ร่วมกับ ไนโตรเจน (N2)

The N2 gas and preheating effect have achieved significant improvement in soldering work! N2 soldering iron providing 70W high output

Preheating effect
· The hot N2 gas is effective for preheating.
Oxidation prevention
Various combinations
· Can be used in combination with your existing soldering station, the HAKKO FM-202, HAKKO FM-203, HAKKO FM-204, HAKKO FM-206, HAKKO FX-950, HAKKO FX-951, or with HAKKO FX-952.

N2 System

· Can be used in combination with the HAKKO FX-780 and HAKKO FX-791 to create an N2 System.

Setting example

No.	Name	Picture	Remarks
1	HAKKO FX-951 Station		With Control card, Heat resistant pad, Power cord, Connecting cable and Instruction manual.(Not necessary to purchase this unit if you have it.)
2	HAKKO FM-2026		Tip and nozzle assemblies are optional parts.
	Iron holder
3	Soldering Tip & Nozzle Assembly		Select the soldering tip appropriate for work.
4	N2 Generator	X-780: Small-capacity type FX-781:Large-capacity type, accepts 2 irons	With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally.
5	HAKKO FX-791		Tip and nozzle assemblies are optional parts.
	N2 Flow Meter
6	The others	Air tube Outer diameter: 6mm	* The others are not provided by HAKKO

Model	Picture	The set includes

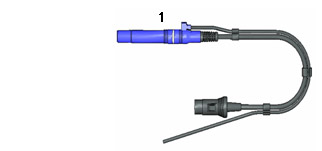

No.FM 2026-02		1. Connector assembly 2. Instruction manual (No figure)

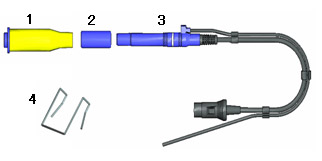

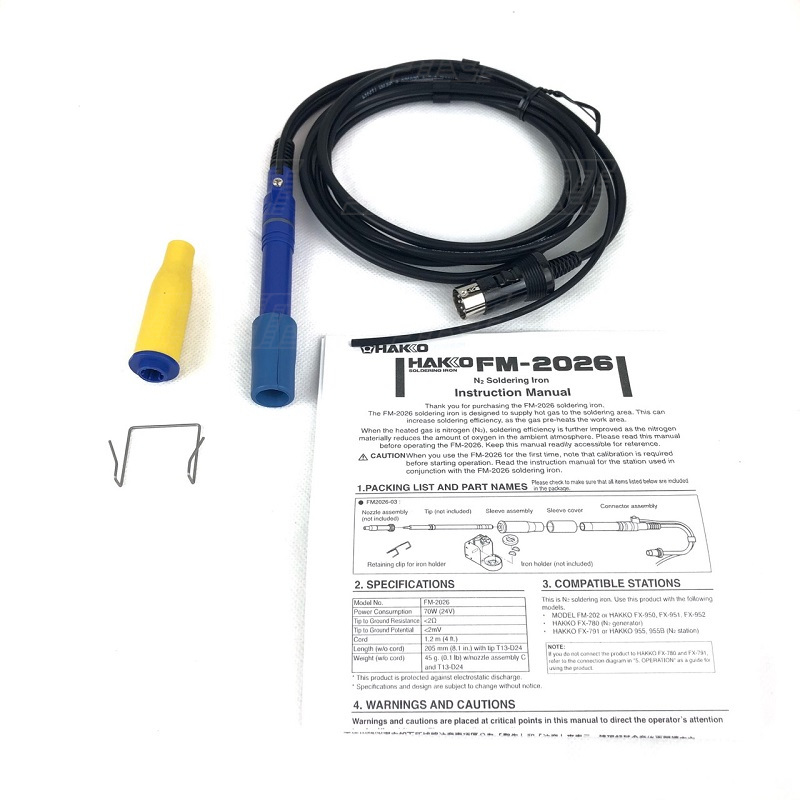

No.FM 2026-03		1. Sleeve assembly 2. Sleeve cover 3. Connector assembly 4. Retaining clip for iron holder 5. Instruction manual (No figure)

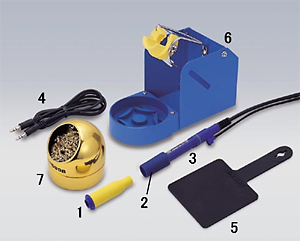

No.FM2026-04		1. Sleeve assembly 2. Sleeve cover 3. Connector assembly 4. Connecting cable 5. Heat resistant pad 6. Iron holder HAKKO FH-200 7. Cleaning wire HAKKO 599B 8. Instruction manual

Note: This unit does not include neither a soldering tip nor a nozzle assembly. When purchasing this unit,please buy your desired soldering tip and with nozzle assembly together.

Model No.	FM2026-02	FM2026-03	FM2026-04
Power consumption	70W (24V)
Temperature range	200-450ºC
Tip to ground resistance	<2Ω
Tip to ground potential	<2mV
Heating element	Composite heater
Cord length	1.2m.
Total length	205mm (with 2.4D tip)
Weight	45g (with 2.4D tip and nozzle assembly C)

* Total length and weight (w/o cord, tube)
* Do not set the temperature over 400ºC.

For the HAKKO FM-2026, neither soldering iron tips and nozzle assembly are supplied as accessories. Please purchase soldering iron tips and a compatible nozzle assembly onto the tip.
T13 Series for Japan, Oceania, Asia & Other countries.
T17 Series for Nouth America & EU.
เลือกซื้อปลาย T13 Series T13 Series
Shape BCM/CM (T13)

---

Shape BC/C (T13)

---

Shape B (T13)

---

Shape D (T13)

---

Shape J (T13)

---

Shape K (T13)

---
