เครื่องวัดไฟฟ้าสถิตย์ ป้องกันไม่ให้เกิดความผิดพลาดกับบุคคลและอุปกรณ์อิเล็กทรอนิคส์ ใช้ในการยืนทดสอบ

The advanced footwear tester that saves measurement data automatically

Meets the requirement of JIS T 8103 : 2010
・Dual Foot Plate

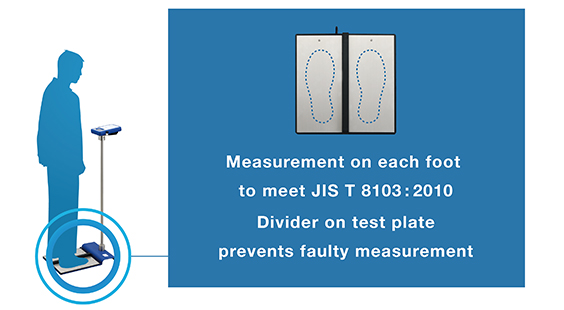

JIS T 8103:2010 requires measurement on each foot. FG-465 measures anti-static performance
of footwear on both feet but individually,and shows the results for each foot.
The divider on the test plate prevents faulty measurement.

Adjustable evaluation range

Evaluation range is adjustable according to required conditions. The settings can be made by the DIP switches on the back side of the unit.

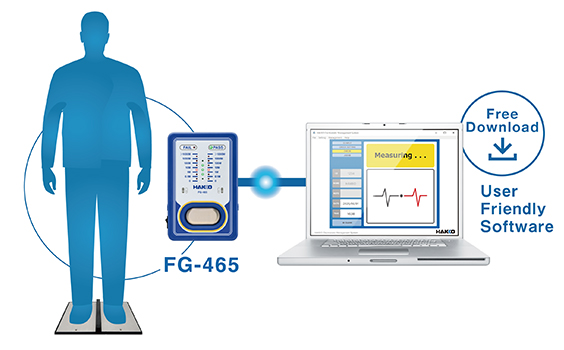

User-friendly software

FG-465 can work with a PC and comes with the user-friendly software, which can be downloaded for free, to support measurement.
The software enables digital management of all the related measurement information including operator IDs

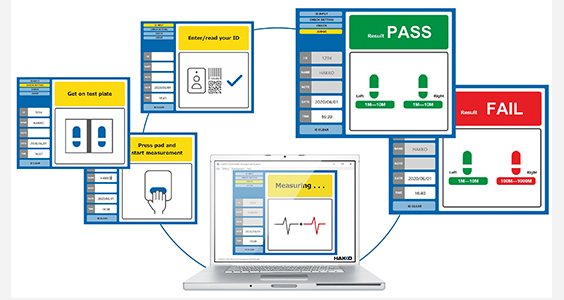

・Measurement procedure

The software shows measurement procedure.

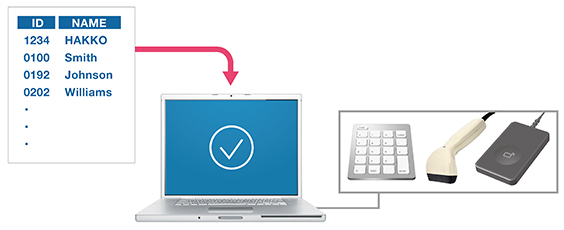

・ID Management

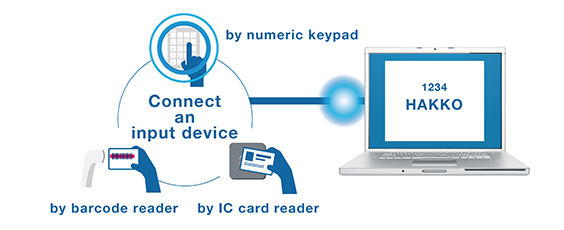

IDs can be input by entering numeric values, reading barcode or IC card.
Personal information can be registered in ID and operator IDs can be recorded as a part of measurement information.

・Saves measurement data automatically

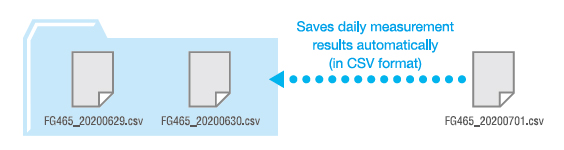

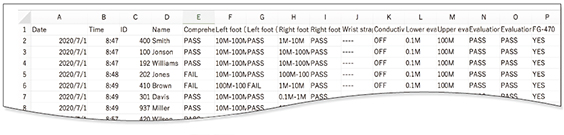

Measurement data can be saved as a CSV file in a specified folder.
The data to be saved consists of measurement date, time, operator ID, and result of each foot to improve traceability.

Works as a combo tester

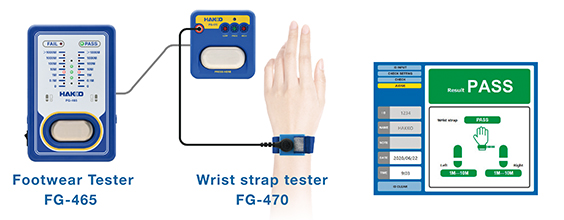

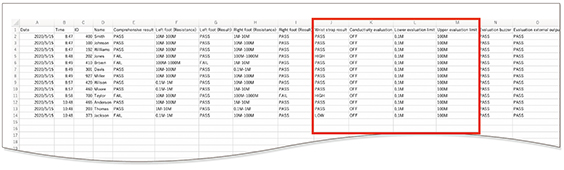

FG-465 can work as a combo tester with FG-470, a wrist strap tester, that makes it possible to conduct measurement,
Tevaluation and recording of both footwear and wrist strap at once.
* Connecting cable (B5264) or Unit integration base (B5263), sold separately, is required.

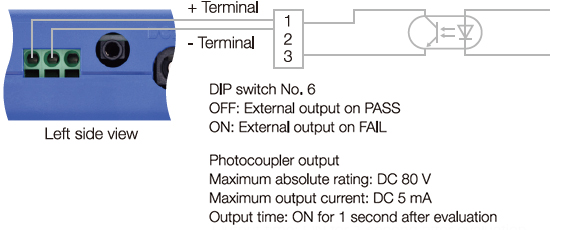

Evaluation external output

Evaluation result of "PASS" or "FAIL" can be output through the external output terminal to interlock with other devices to display the result.

Simple yet high visibility design

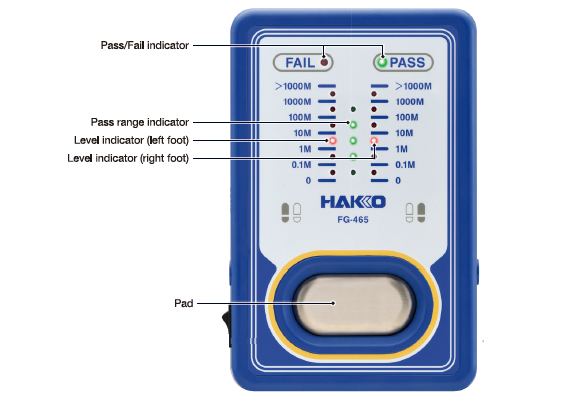

Separate displays of "Evaluation result", "Pass range indicator" and "Level indicator" make it possible to
check necessary information at a glance.

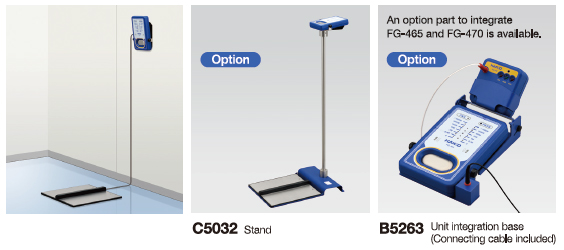

Installations

The unit can be installed on a desk and wall. Also it can be attached to an optional stand.

Usage/Applications

Any impact on people with heart conditions, people using cardiac pacemakers or pregnant women?

A small amount of electric current will flow through the human body when using HAKKO FG-465. Please do not use HAKKO FG-465 if having a heart condition or pacemaker. Consult with a specialist if you are pregnant.

Model	Packing List
HAKKO FG-465	Unit, Test plate, Installation base, Knob (qty 2), Wood screw (qty 2), Pan head screw (qty 2), AC adapter*, USB cable, Instruction manual *AC adapter may not be included depending on the specifications.

HAKKO FG-465 should be calibrated regularly as a Tester / Meter.
For details, please contact us or the distributors in your country.

Model No.	FG-465
Rating	24 DCV 50mA
Measurrment voltage	20 DCV
Measurement range:upper evaluation limit	1000 MΩ (1×109 Ω)  100 MΩ (1×108 Ω)  10 MΩ (1×107 Ω)
Measurement range:lower evaluation limit	1 MΩ (1×106 Ω)  0.1 MΩ (1×105 Ω)  R < 0.1 MΩ (1×105 Ω)
Measurement range: conductivity evaluation	R < 0.1 MΩ (1×105 Ω)
Accuracy : R < 0.1 MΩ	±5%
Accuracy : 0.1 MΩ ≤ R ≤ 100 MΩ	±10%
Accuracy : 100 MΩ < R	±8%
Operating environment	Ambient temperature/Humidity range 0 to 40ºC, 20 to 80%RH (without condensation)
Environmental condition	Applicable rated pollution degree 2 (According to IEC/UL61010-1)
Dimensions	120(W)×30(H)×185(D)mm
Weight	0.55kg

* Test plate

Cord length	1.6m
Dimensions	300(W)×30(H)×300(D)mm
Weight	1.9kg

* AC adapter

Output voltage

24 DCV

* Weight for main unit (including mounting base)
* Weight for test plate or AC adapter (without cord)
