เครื่องดูดควันตะกั่ว มีการทำงานที่เงียบและการดูดที่มีประสิทธิภาพที่มีขนาดมอเตอร์ สูงถึง 1,500 Pa

Employing excellent cost performance filters!

Suitable for places where a lot of soldering is conducted

Employing excellent cost performance filters (Filter efficiency 99.7%).

The life of new filters will be approx. 4 times longer compared to HAKKO FA-430 which employs HEPA* filter. (High Efficiency Particulate Air filter)

* The filter life will differ depending on the work environments and work conditions.

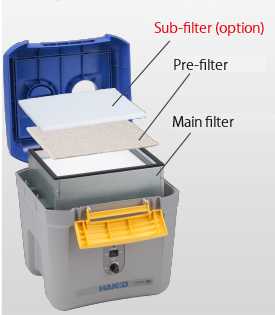

The filter life can be even longer with sub-filter (Option part)

With the use of sub-filter, the life of pre-filter and main filter will be approx. 10 times* longer!

* The filter life will differ depending on the work environments and work conditions.

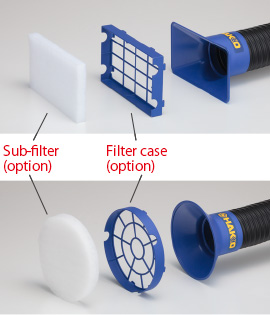

Recommended for auto-soldering application for less frequency of changing sub-filter.

Recommended for hand soldering application for easy and quick change of sub-filter at nozzle.

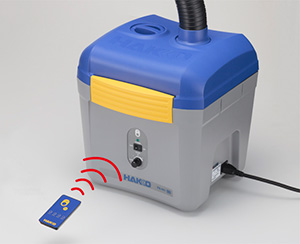

Switch ON/OFF of the unit with a remote control

With a remote control, now it is very easy to switch ON/OFF the unit which is placed under the table.

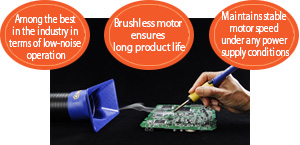

Quiet operation and powerful suction.

Exhaust noise has been reduced without sacrificing suction performance by the addition of a silencer unit to the exhaust outlet to ensure smooth air outflow. A high-performance motor with 1,500 Pa of static pressure provides powerful suction and quiet operation.

*Values measured when the unit was used with a 60 Hz power supply.

Catch harmful smoke with freestanding ducts and adjustable air volume to suit your working environment

Is your smoke absorber affected by air conditioning? Are you fed up with having to re-adjust ducts after every line change? The HAKKO FA-431 fume extractor is the answer to your problems.

Airflow adjustment

Three airflow modes are available: High, Medium, and Low. Significantly improve your working environment by using an airflow volume that suits the worksite and the job.
* Low mode: Not easily affected by the surrounding environment. For use in small, quiet locations. (For when low-noise operation is a priority.)
* Medium mode: For normal use.
* High mode: For use in locations that are significantly affected by the surrounding environment.
(For when suction performance is a priority.)

Freestanding ducts

Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed. Say goodbye forever to ducts that are long, heavy, and hard-to-handle.

Photo above: Bends and stretches freely for perfect placement!
Photo on left: Lightweight and compact, the HAKKO FA-430 weighs only 7.5 kg. Built-in handles allow the fume extractor to be moved easily, facilitating line changeovers.
* The picture is HAKKO FA-430, which employs HEPA filter.

If the duct is mounted at an angle above the workpiece, it is easily affected by air conditioning

If the duct is mounted directly above, it can be difficult to see the workpiece

Duct is mounted on the worktable to provide excellent suction performance

Model	Picture	Packing List
HAKKO FA-431		Main unit, Power cord, Remote controller, Cap, Main filter L, Pre-filter L (x10), Instruction manual

* Duct set (C1571/C1572) is not included in FA-431 unit. Please purchase Duct set(s) when you order FA-431 unit.

Model	Picture	Packing List
Duct Set C1571(With rectangular nozzle)		Duct, Adapter, Rectangular nozzle, Net, Instruction manual
Duct Set C1572(With round nozzle)		Duct, Adapter, Round nozzle, Net, Instruction manual

* Noise level is measured at a distance of 1 m from the face of unit in an anechoic room.

* Net in duct sets are not protected against electrostatic discharge.
