เครื่องดูดควันตะกั่ว มีการทำงานที่เงียบและการดูดที่มีประสิทธิภาพที่มีขนาดมอเตอร์ สูงถึง 1,500 Pa

Quiet operation and powerful suction.

Exhaust noise has been reduced without sacrificing suction performance by the addition of a silencer unit to the exhaust outlet to ensure smooth air outflow. A high-performance motor with 1,500 Pa of static pressure provides powerful suction and quiet operation.

*Values measured when the unit was used with a 60 Hz power supply.

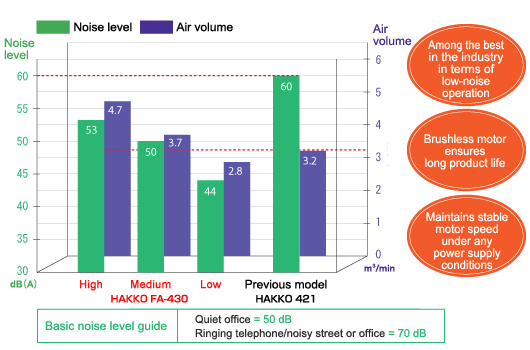

Notes regarding graph:

The HAKKO FA-430 features significantly reduced noise level in medium airflow mode despite the fact that suction performance remains almost unchanged compared to the previous model. High airflow mode also provides quieter operation than the previous model. *Suction performance values are for when two ducts are used. *Measured values for HAKKO 421 were taken when the unit was used with a 60 Hz power supply.

Catch harmful smoke with freestanding ducts and adjustable air volume to suit your working environment

Is your smoke absorber affected by air conditioning? Are you fed up with having to re-adjust ducts after every line change? The HAKKO FA-430 fume extractor is the answer to your problems.

Airflow adjustment

Three airflow modes are available: High, Medium, and Low. Significantly improve your working environment by using an airflow volume that suits the worksite and the job.
* Low mode: Not easily affected by the surrounding environment. For use in small, quiet locations. (For when low-noise operation is a priority.)
* Medium mode: For normal use.
* High mode: For use in locations that are significantly affected by the surrounding environment.
(For when suction performance is a priority.)

Freestanding ducts

Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed. Say goodbye forever to ducts that are long, heavy, and hard-to-handle.

Photo above: Bends and stretches freely for perfect placement!

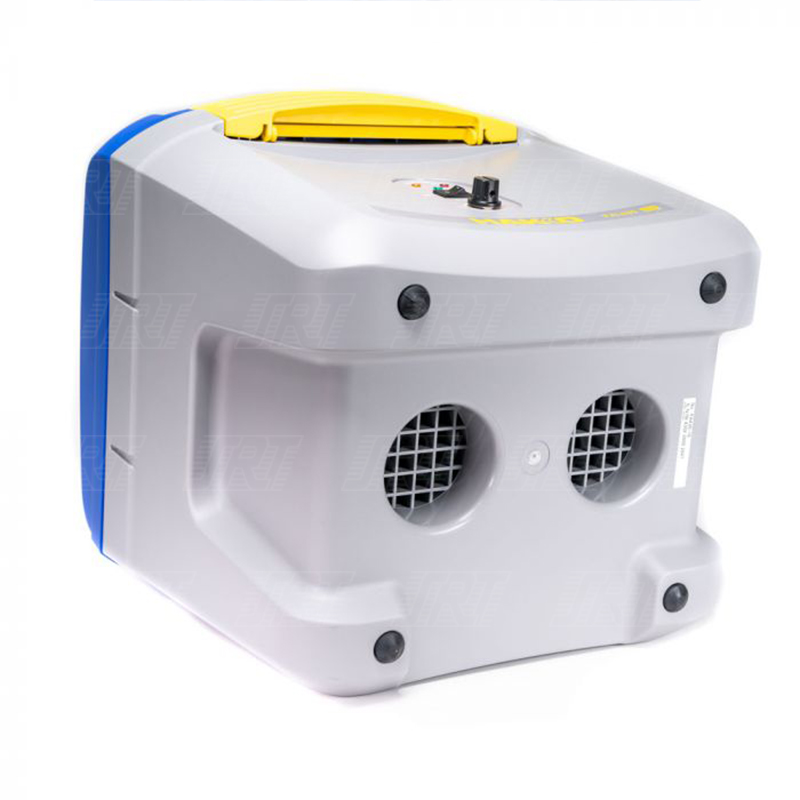

Photo on left: Lightweight and compact, the HAKKO FA- 430 weighs only 7.5 kg. Built-in handles allow the fume extractor to be moved easily, facilitating line changeovers.
*HAKKO FA-430 weighs 35% less than previous models.

If the duct is mounted at an angle above the workpiece, it is easily affected by air conditioning

If the duct is mounted directly above, it can be difficult to see the workpiece

Duct is mounted on the worktable to provide excellent suction performance

Filter replacement notification function ensures excellent trapping efficiency can be maintained at all times

No matter how sophisticated a fume extractor is, if the filter is not replaced at the correct time, it will not be able to give maximum performance. The HAKKO FA-430 detects the number of fan revolutions and notifies the operator of the appropriate time to replace the filter, guaranteeing a comfortable working environment.

Pre-filter
When the pre-filter is 80% clogged or has been used for 200 hours, the orange indicator flashes on and off.

Main filter
When the 10th pre-filter needs replacing,the orange and red lamps flash on and off.

Usage/Application

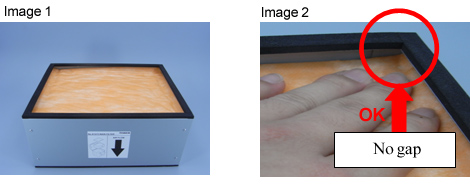

Proper installation
Install the pre-filter inside the frame of the main filter as shown in image 1.Be sure to check that there are no gaps at the corners as shown in image 2.

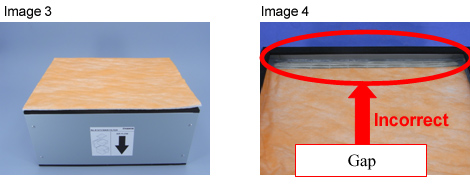

Improper installation
If the pre-filter is not installed properly as shown in images 3 and 4, the main filter will degrade its original performance quickly.

Model	Picture	Packing List
HAKKO FA-430		Main unit, Power cord, Cap, Main filter, Pre-filters (x10), Instruction manual

Duct set (C1571/C1572) is not included in FA-430 unit. Please purchase Duct set(s) when you order FA-430 unit.

Model	Picture	Packing List
Duct Set C1571(With rectangular nozzle)		Duct, Adapter, Rectangular nozzle, Net, Instruction manual
Duct Set C1572(With round nozzle)		Duct, Adapter, Round nozzle, Net, Instruction manual

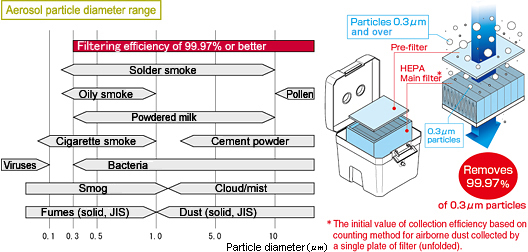

* Filtering efficiency is an initial value of collection efficiency based on counting method for airborne dust collected by a single plate of filter (unfolded).

* Noise level is measured at a distance of 1 m from the face of unit in an anechoic room.
* Net in duct sets are not protected against electrostatic discharge.
